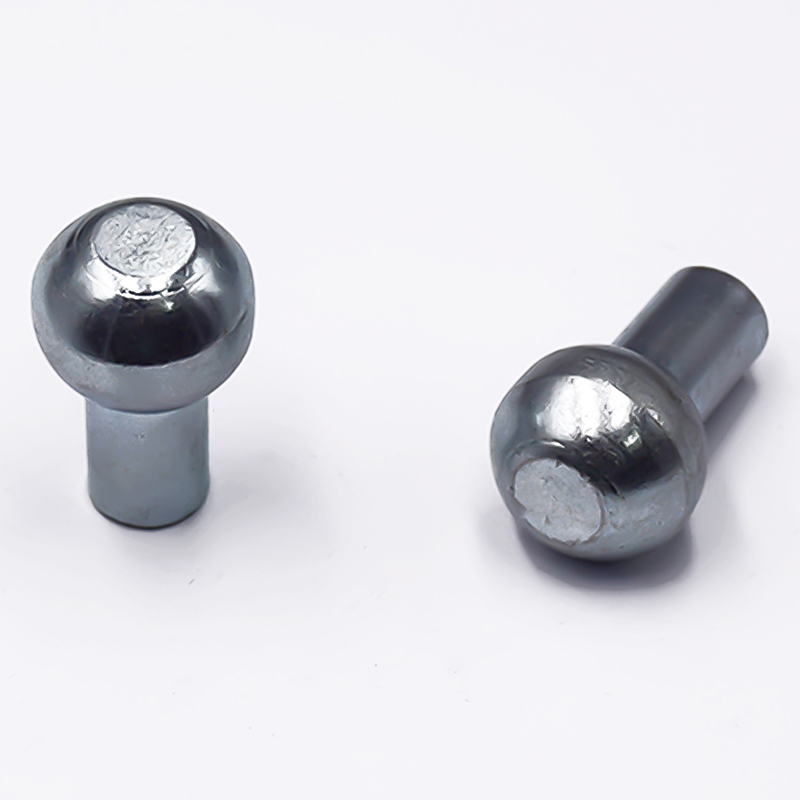

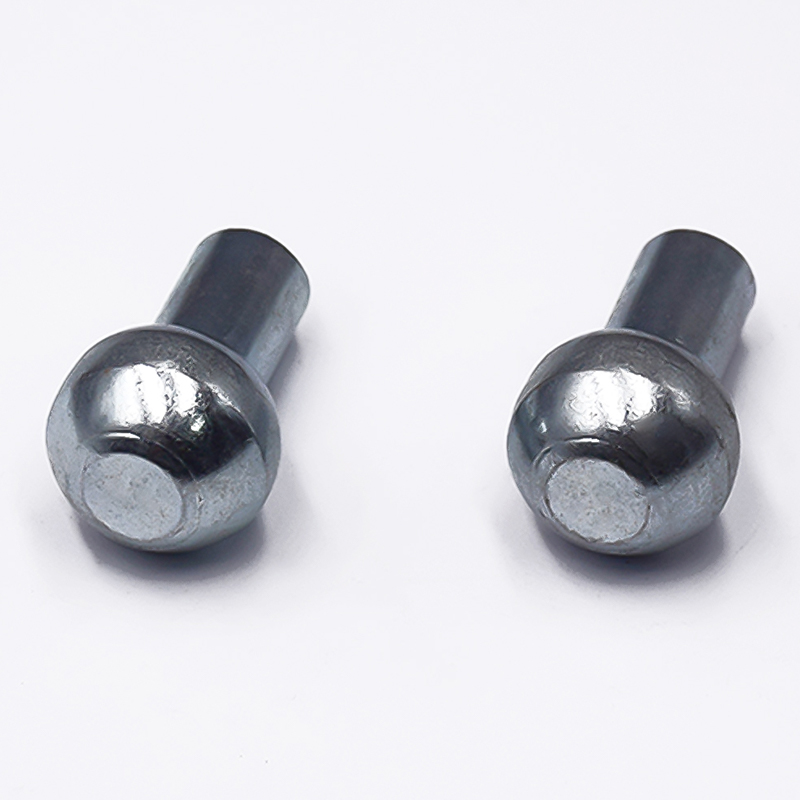

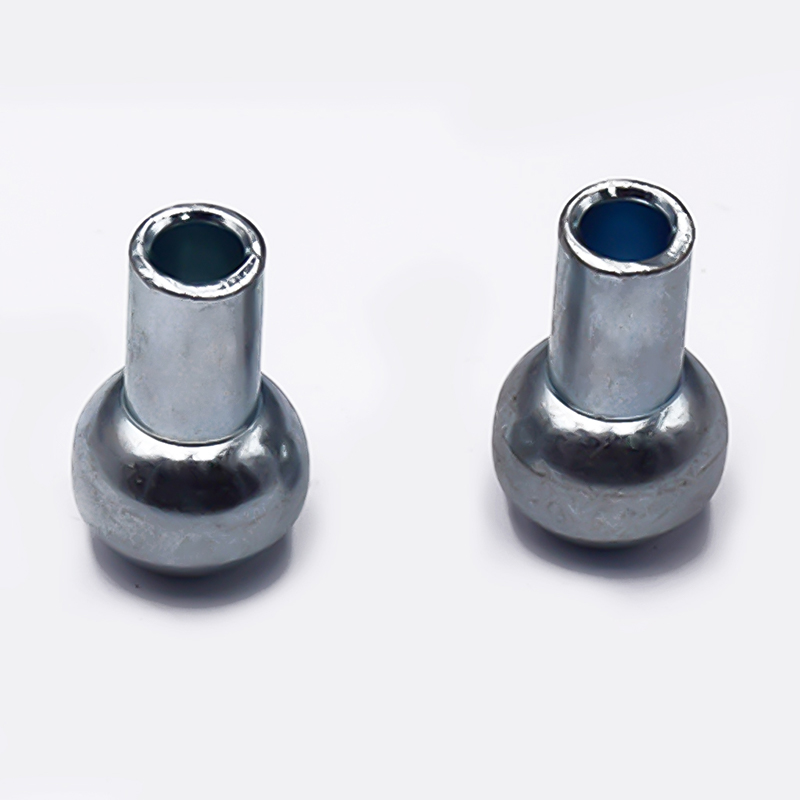

Heat Treated Ball Head Blind Hole Nut

Product introduction

The ball head blind hole nut is a high-end fastener that integrates precision structural design and practical functions. Its unique design combines a ball end and a blind hole thread structure. It is specially developed for precision application scenarios that require hidden connections, beautiful assembly and special angle adjustment. This product belongs to the typical processing category of customized special-shaped fasteners and plays an irreplaceable role in aerospace, precision instruments, high-end electronics and medical equipment industries. As one of the representative products of non-standard parts made in China, blind ball nuts demonstrate my country’s technological accumulation and manufacturing strength in the field of precision fasteners. As a professional Wenzhou non-standard parts factory, we have established a complete blind ball nut manufacturing system based on more than 20 years of experience in focusing on the production of precision fasteners. From material science to molding technology, from heat treatment technology to surface treatment, every link is carefully designed and strictly controlled to ensure that every product can meet customers' precise requirements. Especially in the construction of cold heading non-standard parts factory, we introduced German multi-station cold heading molding equipment, combined with independently developed mold manufacturing technology, to achieve high-precision, high-volume and consistent production of ball head blind hole nuts.



Product design and features

Spherical head design: Using precise spherical geometric structure, the radius tolerance is controlled at ±0.02mm, and the surface finish is above Ra0.4 to ensure smooth assembly. Optional full or partial spherical design can meet different installation needs. Blind hole thread design:

The internal thread adopts precision tapping technology, and the thread accuracy reaches 6H level. The depth of the blind hole can be customized, up to 3 times the diameter. The bottom is designed with an undercut groove to ensure the integrity of the thread.

Diversity of material selection: stainless steel series: 304, 316, 316L, 440C, etc., alloy steel series: SCM435, 35CrMo, 42CrMo, etc. Special materials: titanium alloy, copper alloy, high temperature alloy, etc. Surface treatment options: nickel plating, zinc plating, chromium plating, anodizing, passivation treatment, DLC coating, Teflon coating.



Manufacturing process features: Multi-station cold heading forming: 8-station cold heading machine is used in the cold heading non-standard parts factory, with a one-time forming rate of more than 95%. Precision CNC processing: the spherical surface adopts CNC turning and grinding composite process, heat treatment optimization: three-stage process of vacuum quenching + cryogenic treatment + tempering, automated inspection: machine vision system + three-coordinate measurement full inspection.



Product performance and application fields

Tensile strength: 800-1000MPa, up to 1200MPa Surface hardness: HRC28-35, HRC40-45, corrosion resistance: neutral salt spray 96h, more than 500h.

Precision machinery field: industrial robot joint connection, CNC machine tool spindle fixation, semiconductor equipment precision adjustment, optical instrument barrel fixation, aerospace field: satellite antenna adjustment mechanism, concealed installation of aircraft interior parts, aerospace instrument shock absorption fixation, drone gimbal connection, medical device field: surgical robot transmission components, imaging equipment Slide rail fixation, angle adjustment of rehabilitation equipment, precision connection of dental equipment, high-end consumer electronics: professional photography equipment heads, high-end audio adjustment components, precision measuring instrument bases, professional lamp angle adjustment, automobile manufacturing field: advanced car seat adjustment, hidden fixation of car interior parts, new energy vehicle battery packs, advanced driving assistance systems.



Quality Control and Certification Standards

Quality management system ISO 9001:2015, quality management system certification, IATF 16949, automotive industry quality management system, ISO 13485 medical device quality management system, AS9100 aerospace quality management system.



Certification and standards compliance:

National standards: GB/T 90.1-2015, international standards: ISO 4032, DIN 934, industry standards: NAS, MS, AN and other aviation standards, customer standards: meet customer special technical specifications.



Selection service

Technical consulting services, free technical consulting: provide 24-hour online technical support, application design: engineering team provides professional solutions, sample testing support: provide free samples for actual testing, installation guidance services: video guidance + on-site support.

Customized selection parameters: Size specifications: M2-M20 full series, special sizes can be customized, material selection: more than 30 materials available, special materials can be developed, surface treatment: 15 standard treatments, special requirements can be customized, special functions: anti-loosening, sealing, conductive, insulating, etc.

Service advantages: Quick response: respond within 2 hours, provide preliminary plans 24 hours a day, professional team: engineer team with more than 10 years of experience, flexible production: support minimum order of 1 piece, fast proofing, full service: one-stop service from design to after-sales.



FAQ

Q: What is the lead time for customized products?

A: As a professional customized non-standard parts factory, our delivery cycle is arranged as follows: standard specifications: 7-10 working days, customized specifications: sample period 10-15 days, mass production 15-2, special complex specifications: determined based on evaluation of technical requirements, urgent orders: expedited service can be provided, the fastest is 5 working days.



Q: What is the minimum order quantity requirement?

A: As a non-standard parts factory in Wenzhou, we provide flexible order policies: sample orders: 1-10 pieces are acceptable, small batches: 50-500 pieces, medium batches: 500-5000 pieces, large batches: more than 5000 pieces to enjoy price discounts, long-term cooperation: annual supply agreements can be signed.



Q: How to ensure product quality consistency?

A: We ensure quality through multiple measures: automated production lines reduce human factors, keep production records and quality data for each batch of products, perform regular equipment calibration and maintenance, establish a complete quality traceability system, and as a cold heading non-standard parts factory, adopt an advanced online detection system.
