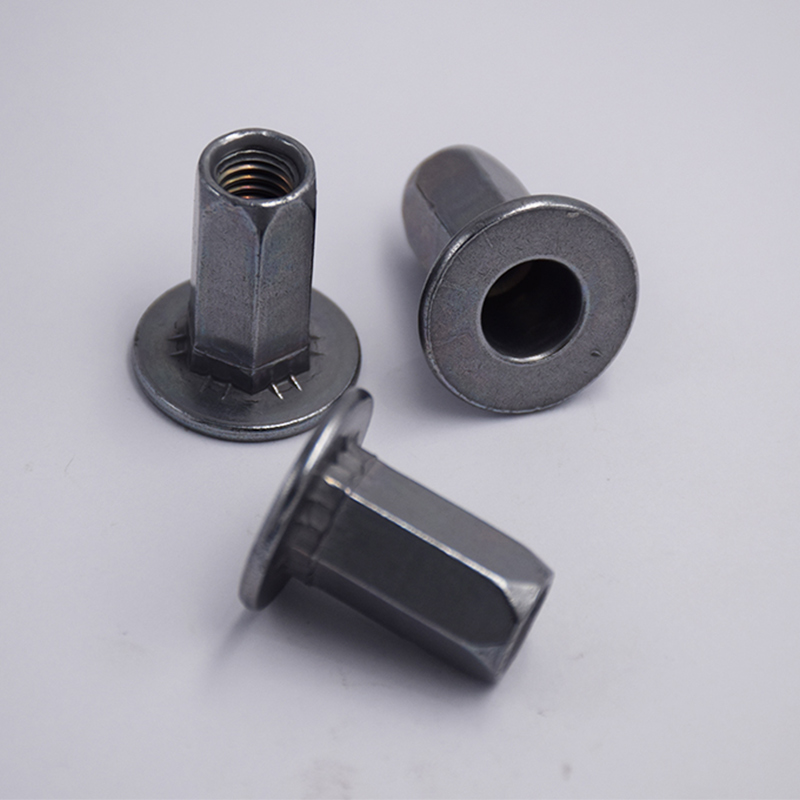

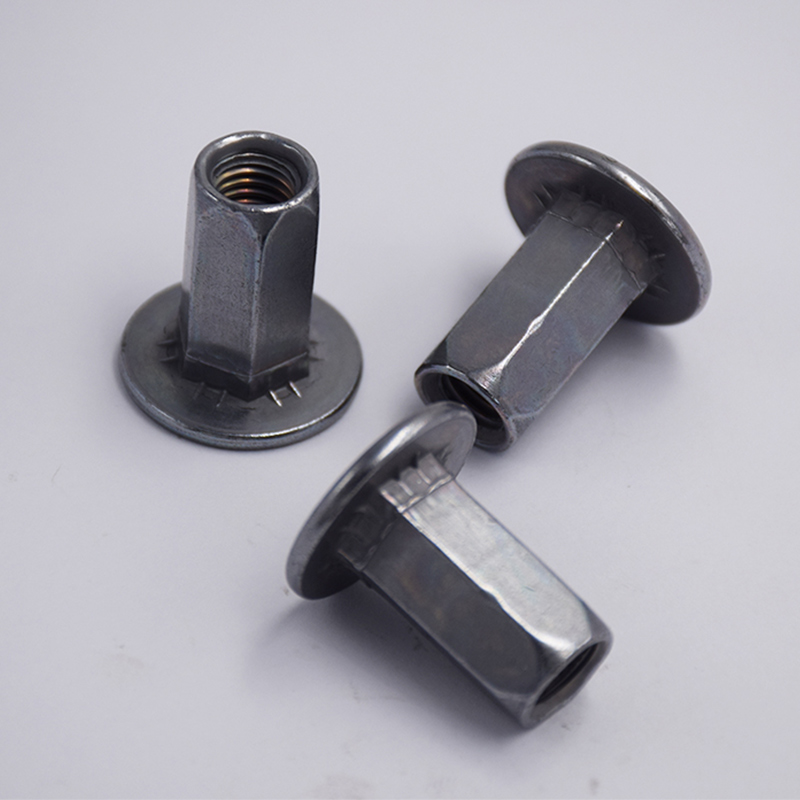

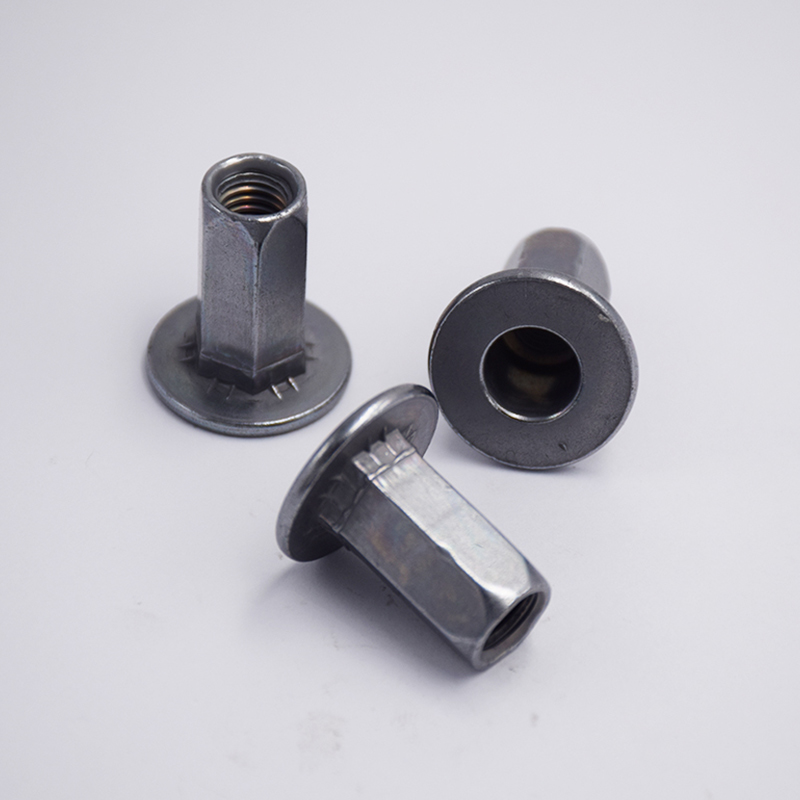

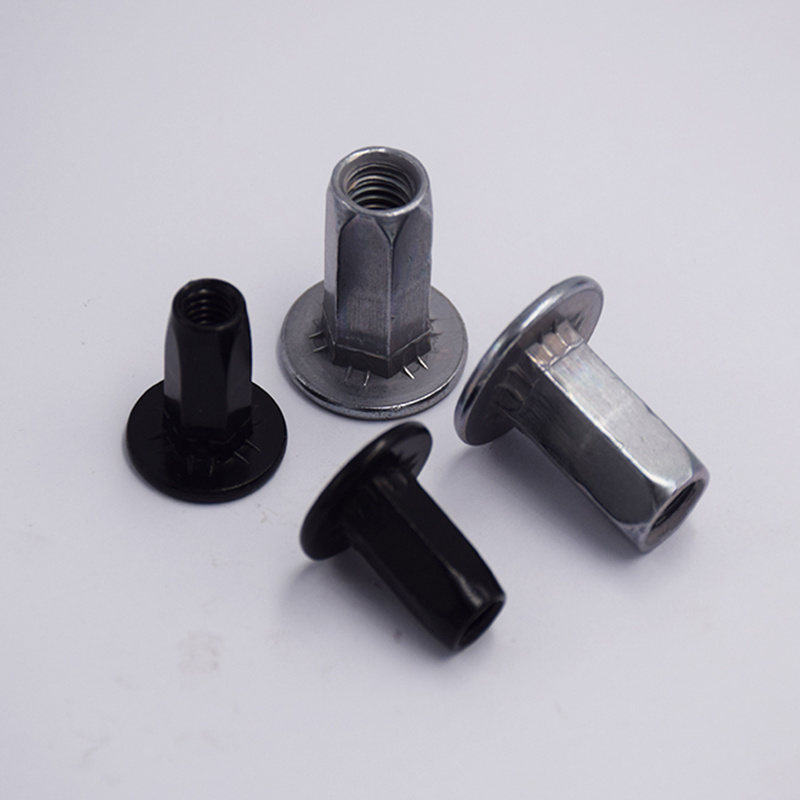

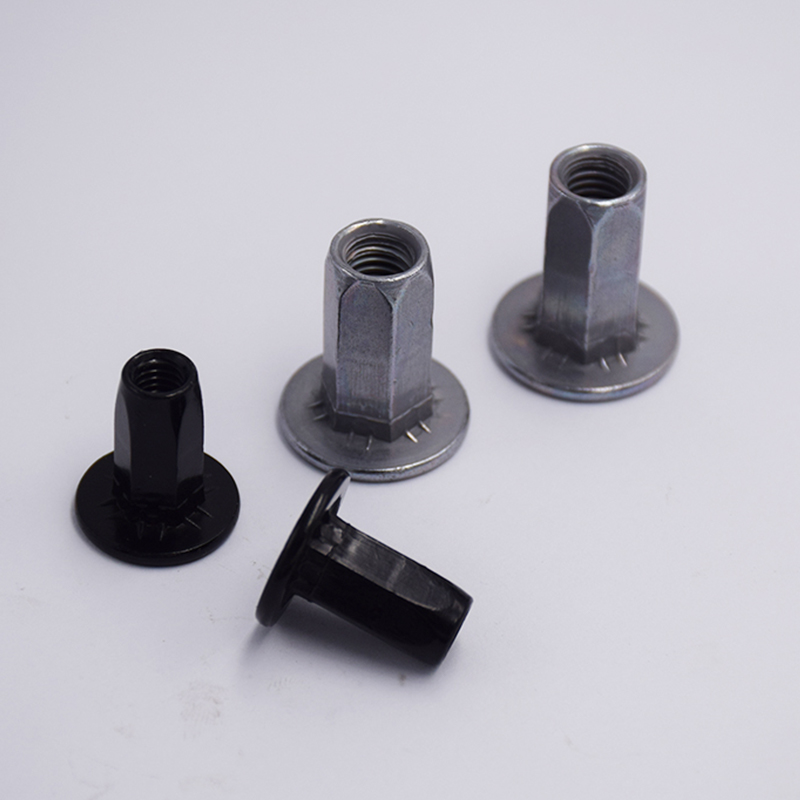

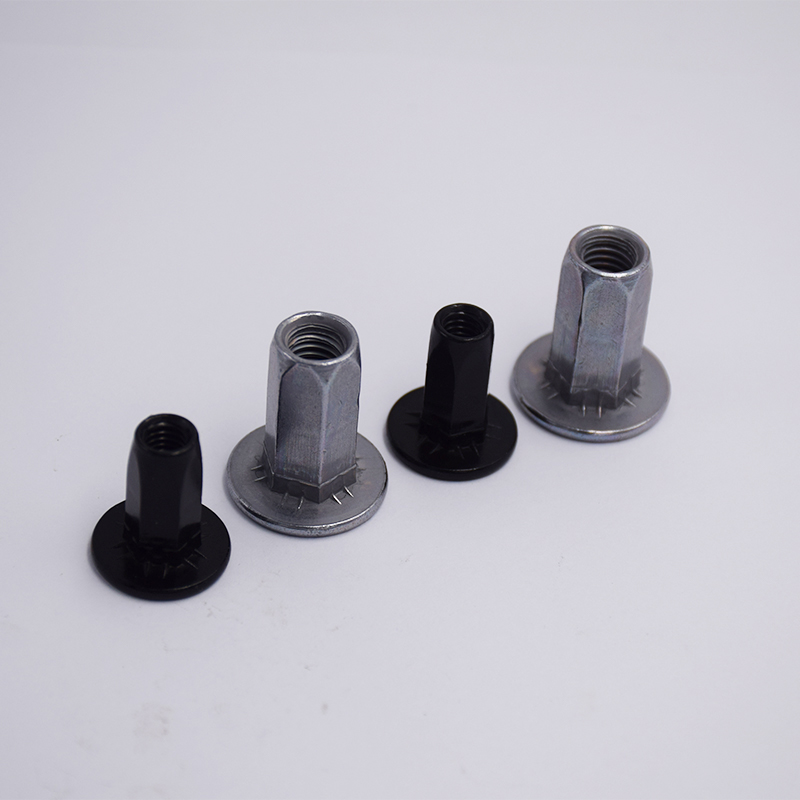

Aluminum Threaded Hexagon Socket T-Cap Nut

Product introduction

The Hex T-Nut is an innovative one-piece fastener designed to tightly combine a standard metal hex nut with an underlying nylon or metal cylinder. This structure makes it function beyond the traditional nut and become an efficient load-bearing and clamping element. During assembly, the nut needs to be tightened from its hexagonal head side using a standard wrench. As torque is applied, the lower clamping sleeve will pass through the mounting hole of the connector and produce radial elastic deformation under pressure, tightly fitting the hole wall. This process not only secures the nut itself firmly, but also creates a uniform clamping force throughout the thickness of the plate, effectively dispersing the load and preventing pressure loss or deformation of thin materials. Therefore, it is especially suitable for the structural connection of various types of sheet metal parts, aluminum profile frames, metal sheets and composite materials. It can demonstrate excellent performance in scenarios such as the assembly of chassis cabinets, the fixation of automation equipment protection nets, and panel installation that requires frequent disassembly and maintenance. Its design takes into account the strength of the connection and the convenience of assembly, providing a solid connection foundation for the modularization and lightweight requirements in modern industrial design.



Product features

1. Excellent torsion resistance: The standard external hexagonal head design can be tightened with an ordinary wrench and can withstand extremely high torque, effectively preventing slippage during the tightening process and ensuring the firmness of the connection.

2. Strong anti-vibration and anti-loosening performance: The lower sleeve will elastically deform when tightened, tightly hugging the wall of the installation hole, forming strong friction. This feature effectively resists shock and vibration, preventing the nut from loosening during use.

3. Distribute the load and protect the workpiece: The wide sleeve base provides a larger pressure-bearing area, which can evenly distribute the tightening force and load to the entire contact surface, effectively preventing indentation or deformation on the surface of thin plates or soft materials.

4. Convenient one-sided installation: Installation can be completed with one-sided operation, which solves the problem of limited space on the back of a closed frame or box that is difficult to operate, and greatly improves assembly efficiency.

5. Provide a strong thread load-bearing point: It provides a high-strength, high-stability internal thread for the connector, which is especially suitable for occasions that require frequent disassembly. It can effectively protect the threaded holes of the base material and extend the service life of the overall structure.



Product application

1. Heavy equipment and structural frames

In the connection of construction machinery, heavy equipment racks and large aluminum profile frames, its outer hexagonal design can withstand large torque tightening, ensuring the ultimate strength and stability of structural connections, and is suitable for key load-bearing nodes.



2. Transmission system with frequent vibrations

It is commonly used in equipment with high-frequency vibration environments such as fans, pump units, and engine supports. Its excellent anti-loosening performance can effectively resist long-term vibration, ensure the safety and reliability of transmission component connections, and prevent failures caused by loose screws.



3. Connection of thin plates and soft materials

On thin-walled components such as sheet metal chassis, control cabinets, automobile body panels, etc., its wide sleeve base can disperse the stress, avoid sheet deformation or collapse caused by excessive pressure at a single point, and perfectly protect the surface of the workpiece.



4. Closed structures requiring high maintenance

For closed structures such as distribution boxes and communication cabinets that require frequent opening and closing for maintenance, it provides a solution that can be firmly installed and disassembled from one side, greatly improving the convenience of equipment maintenance.



5. Transportation manufacturing

In scenarios such as fixing interior panels of rail transit vehicles and installing accessories on commercial vehicle chassis, its reliable vibration resistance and strong clamping force can meet the stringent safety requirements of transportation vehicles.



FAQ

Q: What are the core advantages of this product compared to the traditional combination of nuts and washers?

A: It realizes the integrated design of nuts and washers. The sleeve at the bottom not only replaces the function of the gasket - dispersing pressure and protecting the workpiece, but also provides excellent anti-loosening capabilities through elastic holding of the mounting holes. This simplifies materials management and improves assembly consistency and reliability.



Q: What are the requirements for the pre-processed holes of the plate during installation?

A: Usually a precise circular through hole is required. The diameter of the hole is critical: it should allow the sleeve to pass through smoothly, but not be too large to ensure that the sleeve has enough material to create the necessary holding force when compressed. Please be sure to refer to the product specification sheet to select the corresponding recommended hole diameter.



Q: How to ensure the installation is in place? Are there any recommended installation tools?

A: When the sleeve of the nut completely passes through the plate, and the bottom end surface is completely attached to the workpiece, and the hexagonal head is also pressed against the surface of the workpiece, it means that it is installed in place. It is recommended to use a calibrated torque wrench and tighten according to the recommended torque values ​​provided to ensure optimal performance and avoid damage to the product.
