Stainless Steel Non-Standard Nuts

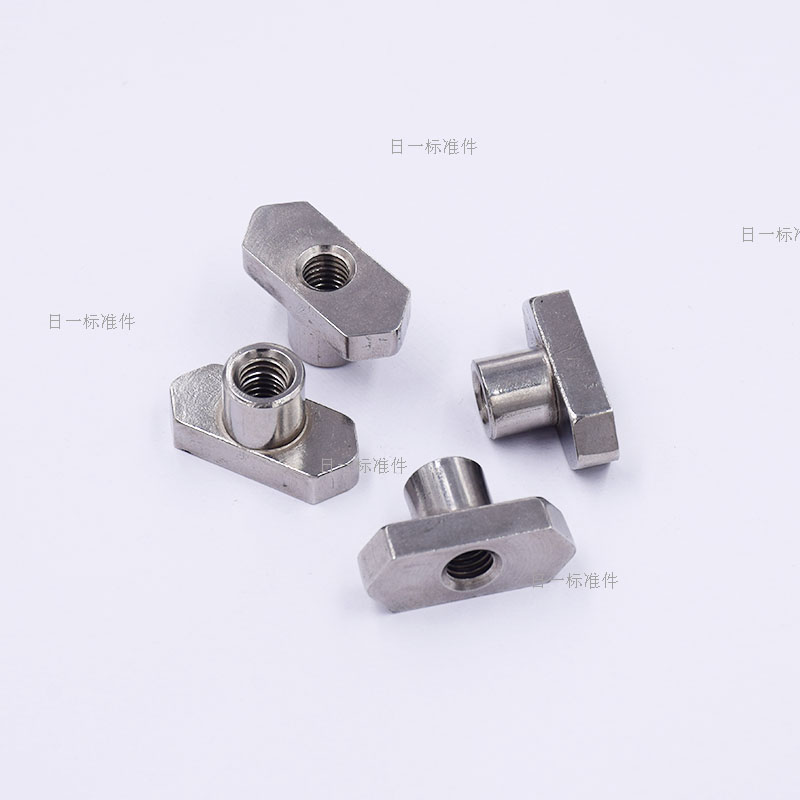

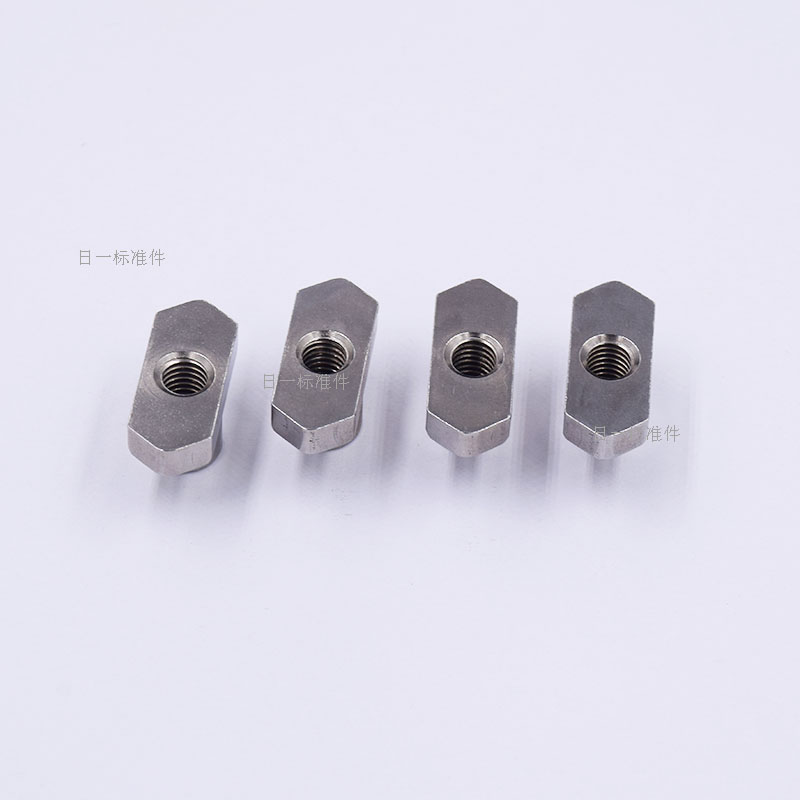

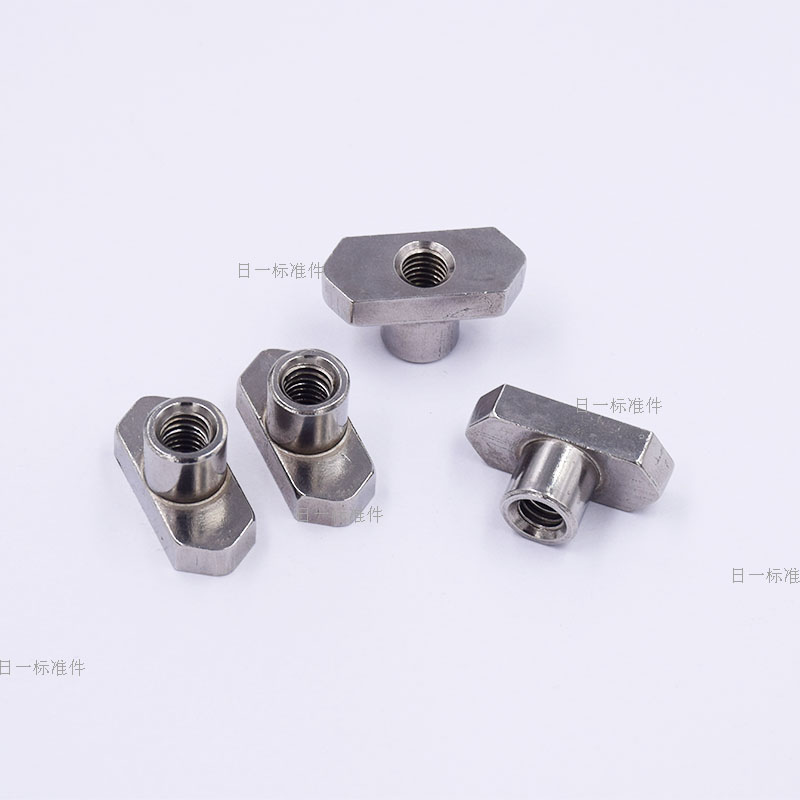

The stainless steel T-shaped track nut is specially designed for T-shaped groove guide rails. It is made of 304/316 stainless steel and features excellent corrosion resistance and high strength.

Send Inquiry

Product Description

The stainless steel T-shaped track nut is specially designed for T-shaped groove guide rails. It is made of 304/316 stainless steel and features excellent corrosion resistance and high strength. Its T-shaped structure can be inserted into the guide rail groove for sliding adjustment, and is combined with bolts to achieve quick positioning and tightening. It is widely used in industrial machinery, automation equipment, assembly line workbenches, and CNC machines, etc. The surface can be passivated for enhanced rust prevention performance. Customized non-standard sizes are supported to meet high-precision and high-load assembly requirements, and it combines durability with convenience.



Product Features:

1. High-strength corrosion resistance: Made of 304/316 stainless steel, it is resistant to oxidation, acid and alkali, and suitable for harsh environments such as damp and high-temperature conditions.

2. T-slot compatible design: Precisely matches standard T-shaped guide rails, allowing smooth sliding and facilitating quick adjustment and positioning.

3. Stable and anti-loosening: After locking with bolts, the locking force is strong, resistant to vibration, and prevents the equipment from shifting or falling off during operation.

4. Surface optimization treatment: Optional passivation or polishing processes can be selected to enhance rust resistance and reduce frictional resistance.

5. Wide compatibility: Supports various specifications (such as 8/10/12mm slot widths), suitable for industrial machinery, automated production lines and other scenarios.

6. Installation is convenient: No complex tools are required. Simply embed it into the guide rail and it can be used, saving assembly time.



Product Application:

1. Industrial Automation Field: Widely used in automated production line conveying systems, positioning and installation fixation of mechanical hands, and connection of guide rails for automated detection equipment.

2. In the field of CNC machining: Fixed worktable of CNC machining center, installation of precision measuring instrument base, and positioning device for mold processing

3. Logistics transportation system: Synchronization of sorting equipment tracks, fixation of conveyor belt supports, assembly of storage shelves

4. Special equipment field: Fixation of moving parts of medical equipment, Installation of semiconductor production equipment, Positioning of precision instruments in laboratories

5. Other industrial applications: Fixing of sheet metal processing fixtures, positioning of welding tools, assembly of automated packaging machinery



Product advantages:

1: Quick installation, precise positioning, strong corrosion resistance, which can meet the requirements of various industrial equipment for high-strength and high-precision fasteners.

2: Anti-vibration and anti-loosening performance

Mechanical interlocking: Engraved patterns or anti-slip textures enhance the friction between the fastener and the guide rail, reducing the risk of loosening caused by vibration.

Stable fixation: Suitable for dynamic scenarios such as high-speed rail and subway, ensuring long-term reliability of fixation.

3. Compatibility and Customization

Multi-specification compatibility: Supports various thread sizes such as M3-M12, and is compatible with T-type guideways of different slot widths (such as 5/6/8/10/12 series).

Non-standard customization: Special sizes, surface treatments (passivation, coating), or heightened designs can be provided.

4. Environmental and Safety Certification

Compliant with RoHS/REACH standards: Free of harmful substances such as lead and cadmium, meeting the environmental protection requirements for electronic equipment and exports.



FAQ

Q1: What are the differences between stainless steel T-shaped track nuts and ordinary nuts?

A1: Structural differences: The T-shaped design is specifically matched to the track groove and can be adjusted slidably; ordinary nuts need to be fixed separately.

Installation method: Directly embedded in the track for use, no additional fixings are required; ordinary nuts need to be paired with bolts and fixing plates.

Application scenarios: Specifically designed for linear motion systems; ordinary nuts are suitable for regular fastening.



Q2: How to choose between 304 and 316 stainless steel?

A2: 304 Stainless Steel: Suitable for general industrial environments, with excellent corrosion resistance and high cost-effectiveness.

316 Stainless Steel: Contains molybdenum, has stronger resistance to chloride corrosion, and is suitable for harsh environments such as marine and chemical industries.

Recommendation: Use 304 for ordinary workshops, and 316 for coastal/chemical factories.



Q3: How to prevent the nut from sliding in the guide rail?

A3: Mechanical locking: Some models come with spring clips or ball self-locking devices

Auxiliary fixation: Can be used in conjunction with stop washers

Correct installation: Ensure that the bolt reaches the specified torque value



Q4: What is the maximum load capacity?

A4: Static load: The standard model can withstand 300-500N

Dynamic load: In a vibrating environment, it is recommended not to exceed 70% of the rated value.



Q5: Can special specifications be customized?

A5: We support non-standard slot widths, special heights and other requirements. We can provide high-strength stainless steel or special alloys, and customize special coatings according to the usage environment.
