Corrosion Resistant T-Bolt Kit

Product introduction

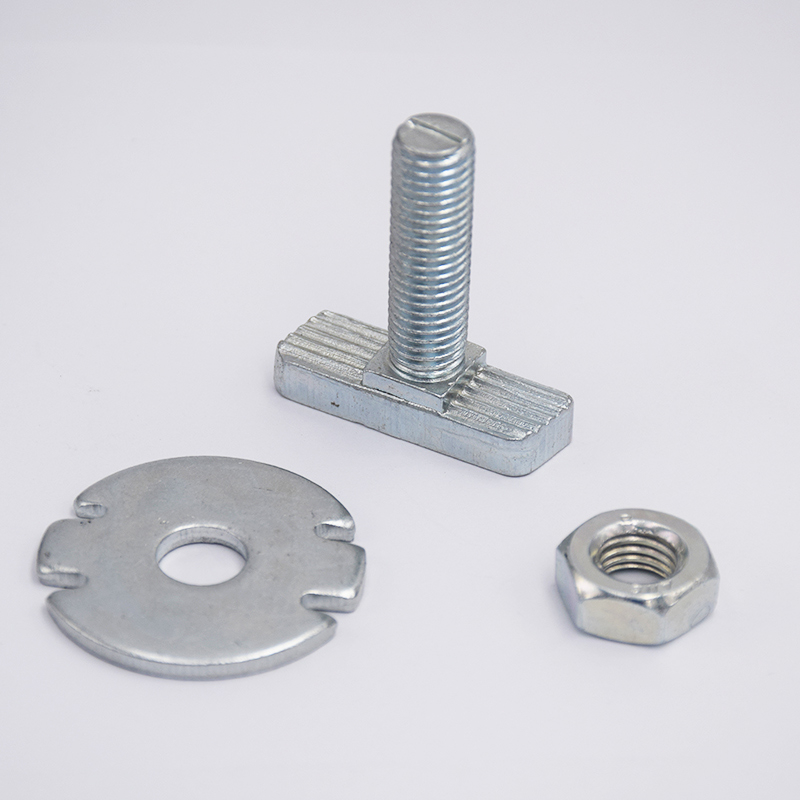

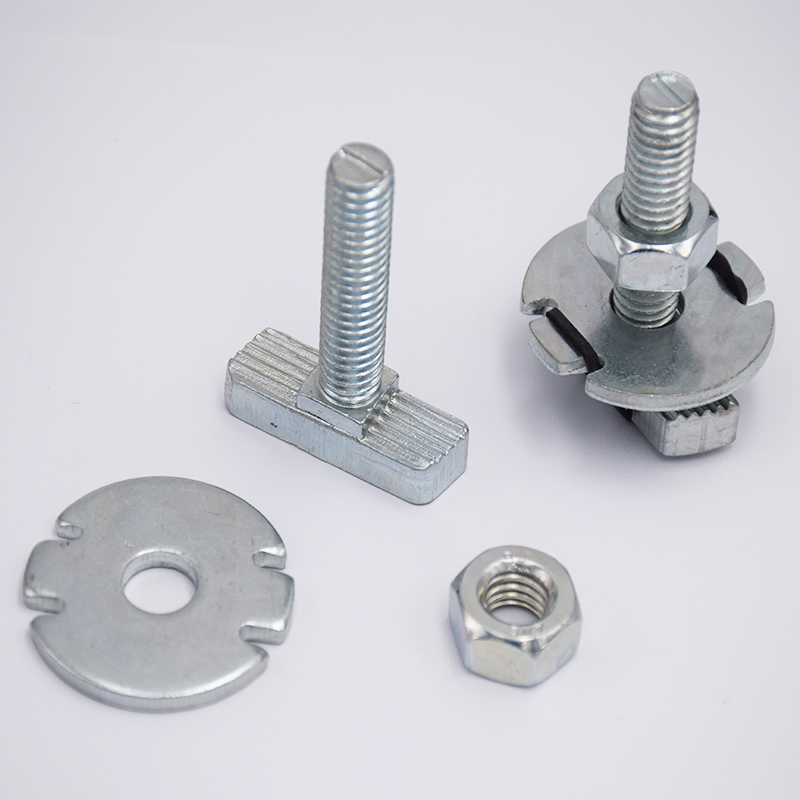

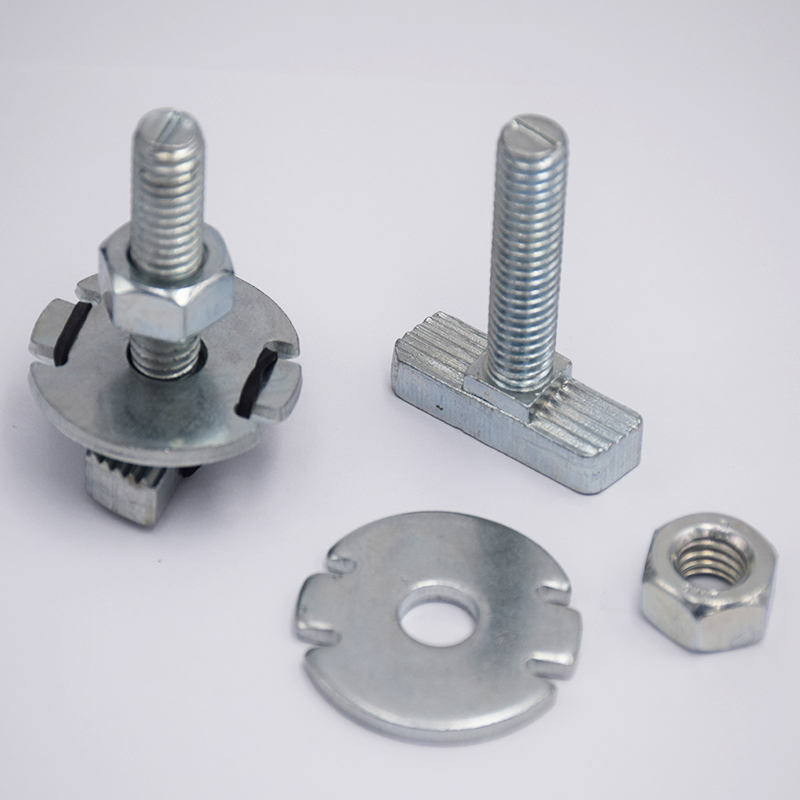

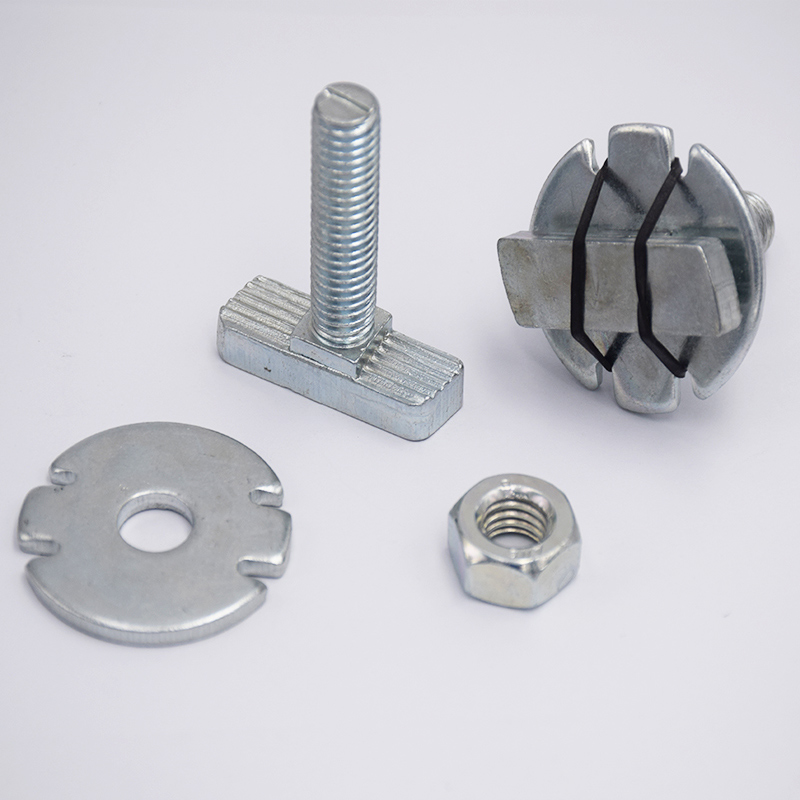

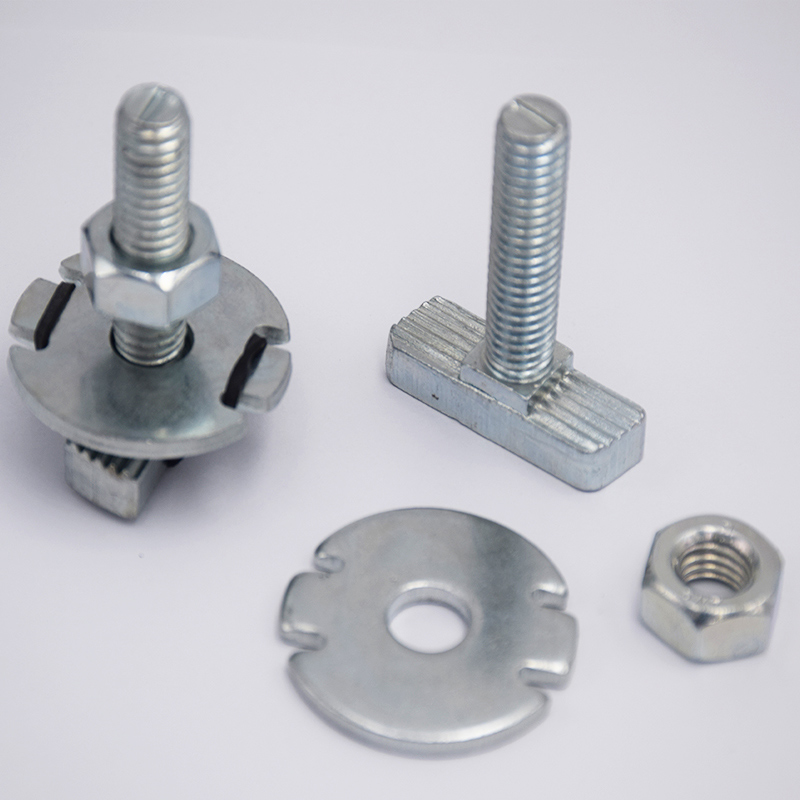

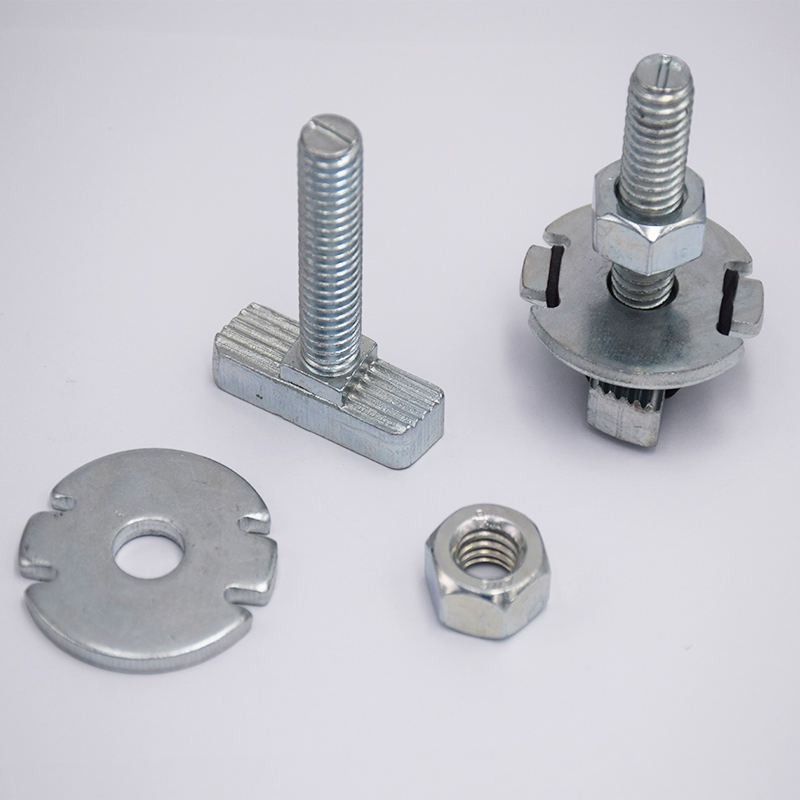

This T-bolt kit is a fastening connection component specially designed for industrial aluminum profiles (such as lean pipes, assembly line profiles) and T-shaped slots of mechanical equipment. The kit contains three core components: toothed T-bolts, flower-shaped (or flange) gaskets and high-strength hexagonal nuts. Its core component is the toothed T-bolt. Both sides of the bolt head are designed with anti-slip tooth patterns, which can be firmly stuck in the profile groove, effectively preventing the bolt from slipping and rotating during the tightening process, ensuring stable and reliable installation. The bolts can slide freely along the profile grooves to facilitate flexible adjustment of the installation position. The matching flower-shaped gasket increases the contact area with the profile and distributes pressure more evenly. It not only provides excellent anti-loosening and anti-seismic effects, but its unique flower-shaped edge also facilitates manual pre-tightening and is quick to install. Finally, the high-strength hexagonal nut completes the final locking. The three work together to form a strong and durable connection system.



This kit is widely used in frame structure construction, mechanical equipment protective covers, workbenches, display racks and many other fields. It is an ideal choice for industrial manufacturing, equipment maintenance and DIY projects, providing you with efficient and reliable fastening solutions.



Product features

1. Excellent anti-rotation and anti-slip capabilities: The core toothed T-shaped screw has precision knurled tooth patterns on both sides of the head, which can generate strong bite force after being embedded in the profile groove, completely solving the problem that ordinary T-shaped bolts are prone to slipping and rotating when pre-tightened, ensuring a smooth installation process and a more stable connection.



2. Excellent anti-loosening and anti-seismic performance: unique flower-shaped gasket (flange gasket) has the functions of elastic gasket and flat gasket. Its large contact surface can effectively disperse the pre-tightening force and protect the profile surface; at the same time, the elastic tension provided by the dish-shaped structure can compensate for looseness caused by vibration or load changes, keeping the connection points tight for a long time.



3. Convenient and efficient installation experience: The wavy edge of the flower-shaped gasket is easy to hold with fingers or pre-position with quick tools. It cooperates with the anti-rotation T-bolt to achieve quick hole alignment and assembly, significantly improving installation efficiency and reducing labor intensity.



4. Flexible adjustability and high strength: The T-bolt can slide anywhere in the profile groove, allowing you to make flexible fine-tuning during installation. Combined with high-strength hexagonal nuts, it can exert huge locking force to meet the needs of strong connection under various heavy-load or dynamic load conditions.



5. Sturdy and durable quality: The kit is usually made of high-quality carbon steel and has surface anti-rust treatment (such as galvanizing). It has good strength, hardness and corrosion resistance, ensuring that the product is durable in severe industrial environments.



Product application

1.Industrial manufacturing and automation fields

Equipment protection: It is widely used in assembling safety covers of mechanical equipment, machine tool fences, etc. It is flexible in installation and easy to disassemble and maintain.

Production line system: It is the core connector for building automated production lines, conveyor lines, work stations, and assembly line frames.

Tooling fixtures: Used to quickly produce adjustable fixtures, positioning blocks and supports to adapt to frequent production line changes.



2. Logistics and warehousing equipment

Shelves and material racks: Used to build modular storage shelves, material turnover vehicles, stacking racks and mezzanine-style platforms. The structure is stable and can be flexibly expanded.

Sorting system: Provide reliable connection support in logistics sorting lines, belt conveyor brackets and other equipment.



3. Exhibition and commercial facilities

Commercial display racks: Used to assemble shopping mall display cabinets, product display racks, LED screen frames, etc., with neat appearance and strong carrying capacity.

Laboratory furniture: often used to build laboratory workbenches, instrument racks, and support structures inside fume hoods.



4. Other professional fields

New energy vehicles: It is used in the fixation of internal modules of battery packs and the construction of test benches.

Scientific research equipment: Frame structures used for customized experimental devices, testing fixtures and non-standard instruments.



FAQ

Q: What is the special function of the "teeth" on the head of the T-bolt?

A: These anti-slip tooth patterns are the core design. They can tightly bite the inner wall of the profile groove, effectively preventing the bolt from rotating when the nut is tightened, thus greatly facilitating installation, saving time, and ensuring the stability of the connection.



Q: Is it possible to purchase a component of the kit (such as a spacer or nut) separately?

A: Yes. We offer complete kits as well as individual parts for sale to meet your replacement or supplement needs. Please contact our customer service or sales staff for details.



Q: Will it loosen if used in an environment with strong vibration?

A: The "toothed anti-rotation" and "flower-shaped gasket anti-loosening" designs of this kit are designed to cope with vibration environments. The elastic pressure and friction-increasing design of the flower-shaped gasket can significantly improve the anti-loosening performance. However, for extremely strong vibration environments, it is recommended to add additional spring washers or use nylon self-locking nuts, and check the tightening regularly.
