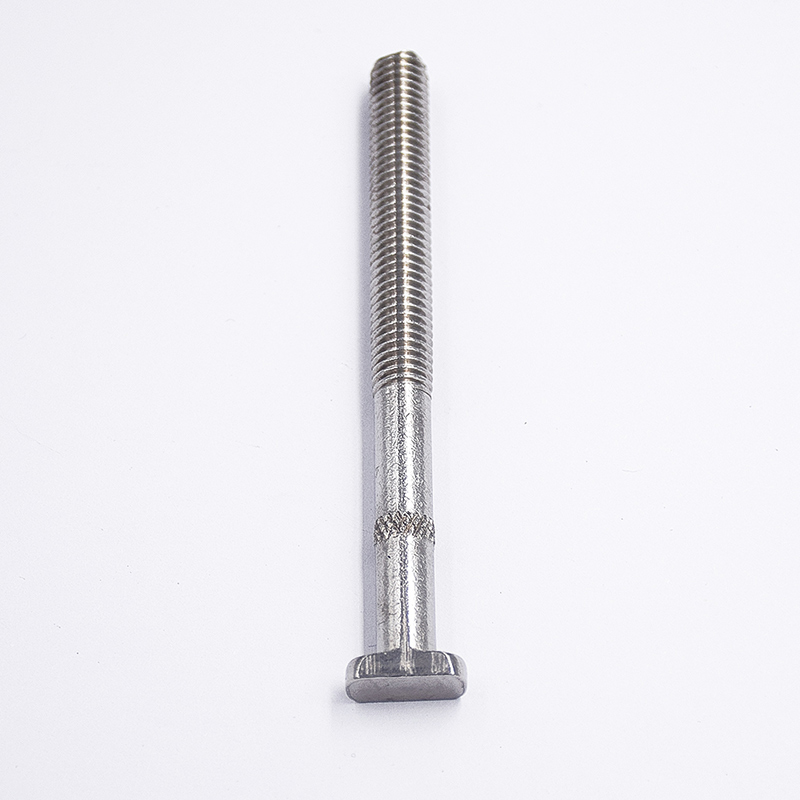

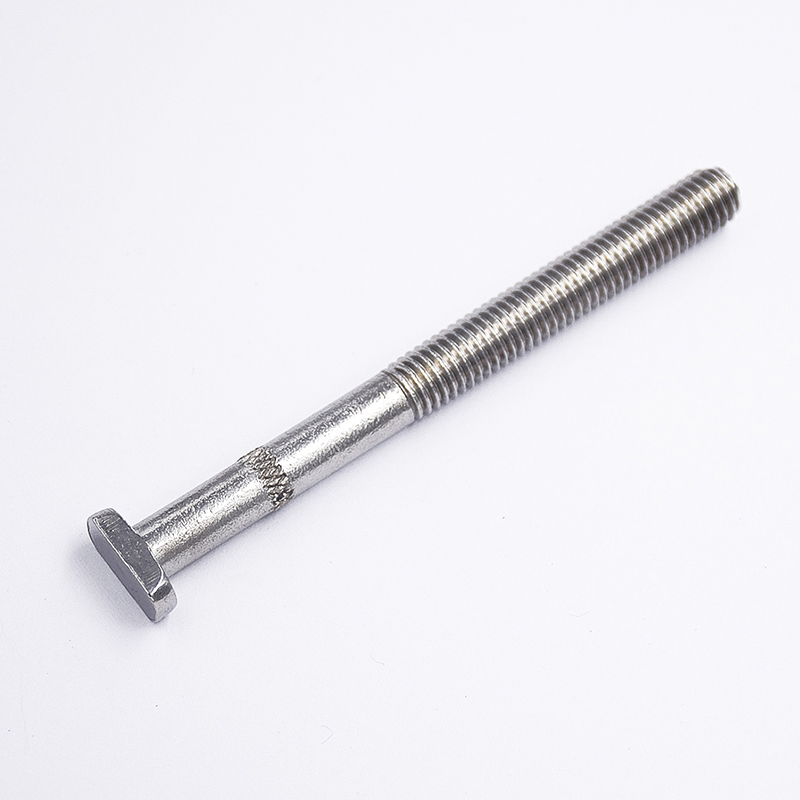

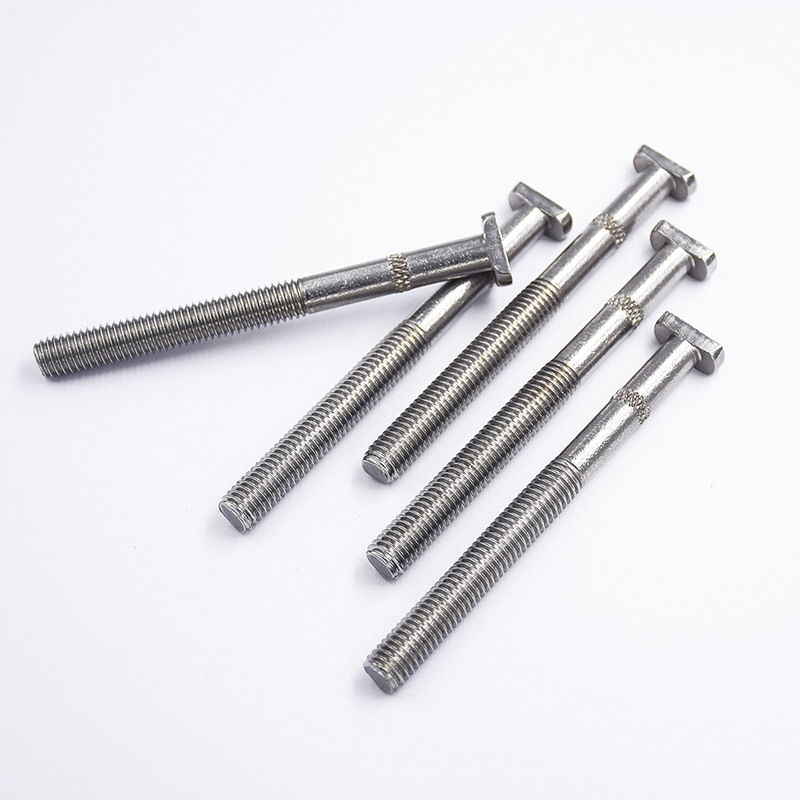

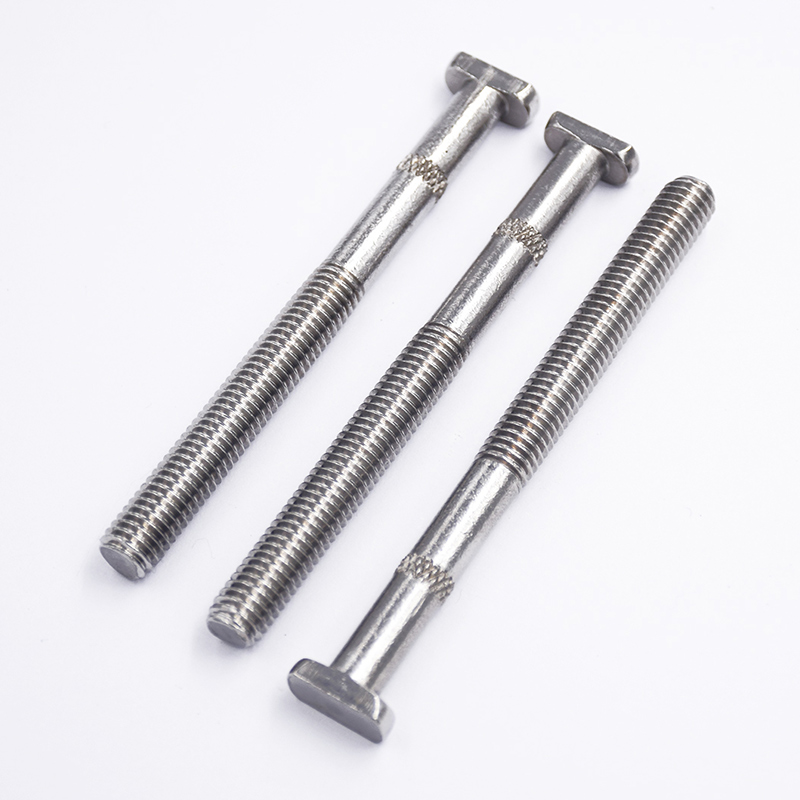

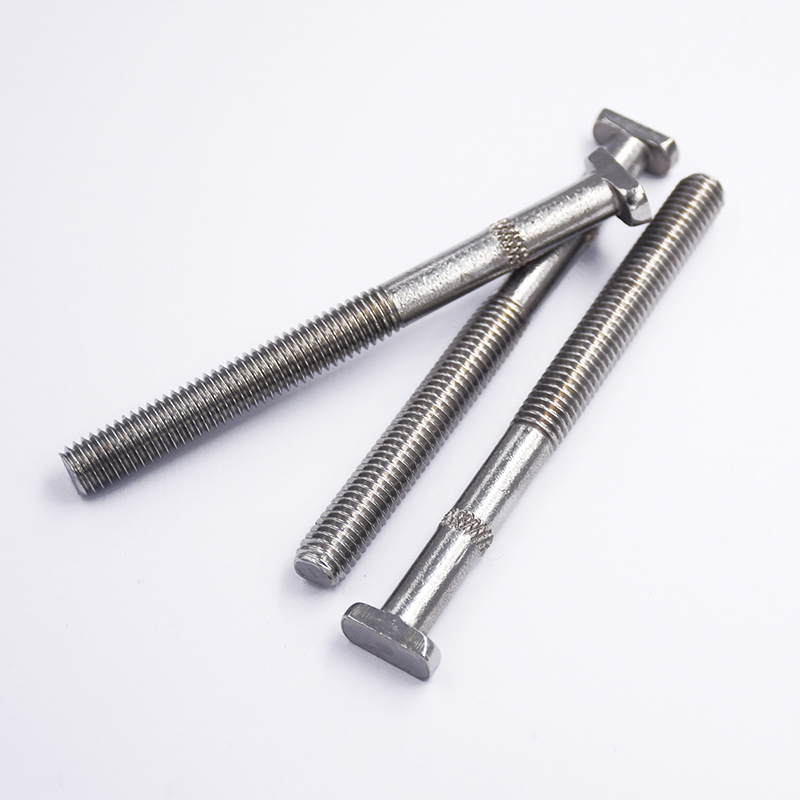

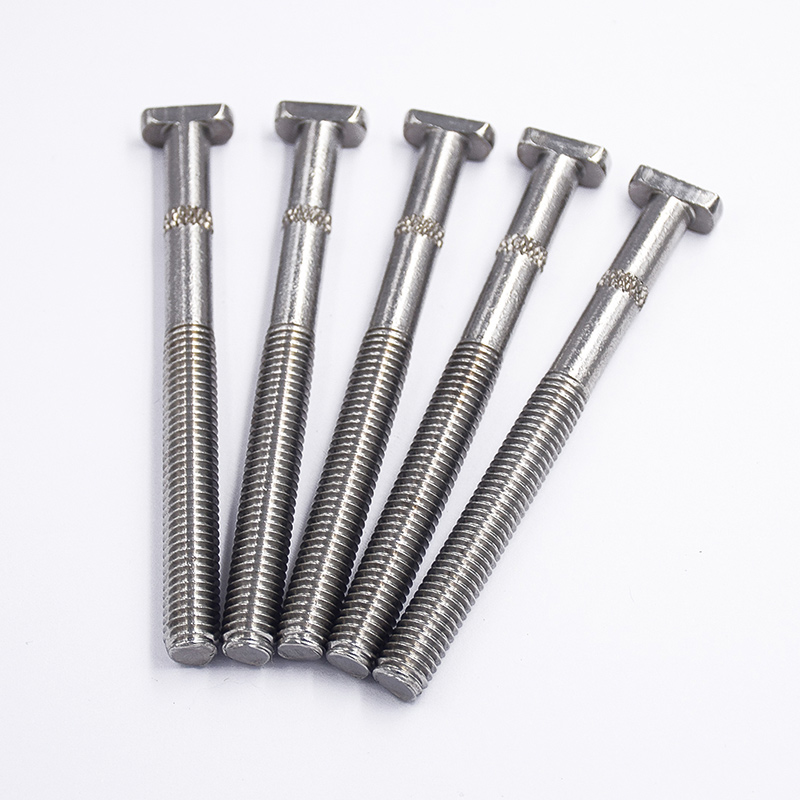

304 Corrosion Resistant Stainless Steel T-Shaped Screws

Product introduction

Stainless steel T-shaped screws are special fasteners with a "T"-shaped head. They are an important category of stainless steel special-shaped fasteners. As a typical custom-made special shape screw, its design perfectly combines the corrosion resistance of stainless steel material and the quick installation characteristics of T-shaped structure. This type of product is widely used in situations where workpieces need to be quickly clamped, slidably adjusted or installed in restricted spaces. They are particularly suitable as customized 304 non-standard parts to meet the special needs of different industries. Thanks to the strong production capacity and complete supply chain system of Made in China, these non-standard parts made in China have excellent quality stability and cost advantages, and can provide customers with cost-effective customized solutions.



Product design and features

Unique T-shaped head design: The width of the head is larger than the rod diameter, forming a stable pressure-bearing platform, which can be used with T-shaped slots, chutes, etc. to achieve quick installation and position adjustment. The bottom surface of the head is precision processed to ensure flatness and verticality.

Material characteristics and advantages: Mainly made of 304, 316 and other stainless steel materials, with excellent corrosion resistance and high temperature resistance. The surface can be polished, brushed and other treatments to improve the aesthetics. Precision manufacturing process: multi-station cold heading forming technology is used to ensure consistent dimensions. The thread adopts precision rolling process to ensure thread strength and precision. Special heat treatment process improves the mechanical properties of the material.



Product functions and application areas

Core functions: Quick installation: T-shaped head can slide in the groove for quick positioning and installation. Adjustable fixation: allows fine adjustment of position along the direction of the groove after installation. Strong load-bearing capacity: T-shaped head provides a larger pressure-bearing area.



Main application areas:

Industrial manufacturing: CNC machine tool T-slot fixation, tooling fixture positioning, automation equipment guide rail installation, building decoration: curtain wall installation, aluminum alloy door and window fixation, decorative panel connection, rail transportation: interior component fixation, track equipment installation, shipbuilding: cabin internal structure connection, equipment base fixation, food machinery: conveyor belt bracket, equipment guardrail installation.



Quality Control and Certification Standards

Strict quality control system: raw materials are produced from well-known steel mills such as Baosteel and Taiyuan Iron and Steel Co., Ltd. to ensure material reliability. Each batch is subjected to chemical composition analysis and mechanical property testing. The production process implements a three-level inspection system of first inspection, inspection, and final inspection.

Testing items and standards: Dimensional accuracy: in line with GB/T 3103.1 standard or customer-specified tolerance requirements, thread inspection: 100% inspection using thread pass-and-stop gauges, surface quality: surface defect inspection in accordance with GB/T 5779.3 standard, corrosion resistance: salt spray test for more than 72 hours without rusting

Certification and Standards: Passed ISO 9001:2015 quality management system certification, products comply with GB/T, ISO, DIN and other relevant standards, and can provide complete quality documents such as material certificates and factory inspection reports.



Customized services

All-round customization solution: supports various special requirements for customizing 304 non-standard parts, and can provide full services from design consultation to mass production. Customizable parameters: material selection: 304, 316, 316L and other stainless steel materials, head size: T-head width, thickness, inversion Special designs such as angles, rod specifications: diameter, length, special thread specifications, surface treatment: natural color, polishing, electrolytic polishing, passivation treatment, service features: free technical consultation and program design, small batch trial production support, rapid proofing service, complete technical support and after-sales service.



FAQ

Q: How long is the delivery cycle for customized 304 non-standard parts?

A: Standard customized products usually take 15-20 working days, and customized special-shaped screws with complex structures may take 25-30 working days. We provide expedited services and can adjust production plans according to customer needs.



Q: Can you provide T-shaped screws with special surface treatment?

A: Yes. We provide a variety of surface treatment solutions, including precision polishing, electrolytic polishing, etc., to meet the special requirements of food, medical and other industries. These non-standard parts made in China can fully meet international standards.



Q: What is the minimum order quantity? Do you accept small batch customization?

A: We understand our customers’ product development needs, and the minimum order quantity for customized 304 non-standard parts can be as low as 500 pieces. For small batch requirements during the R&D stage, we provide specialized rapid prototyping services.



Q: How to ensure the dimensional accuracy of customized products?

A: We use CNC machining centers and precision testing equipment to perform 100% inspection of key dimensions. All non-standard parts made in China undergo strict quality control before leaving the factory to ensure they meet the drawing requirements.
