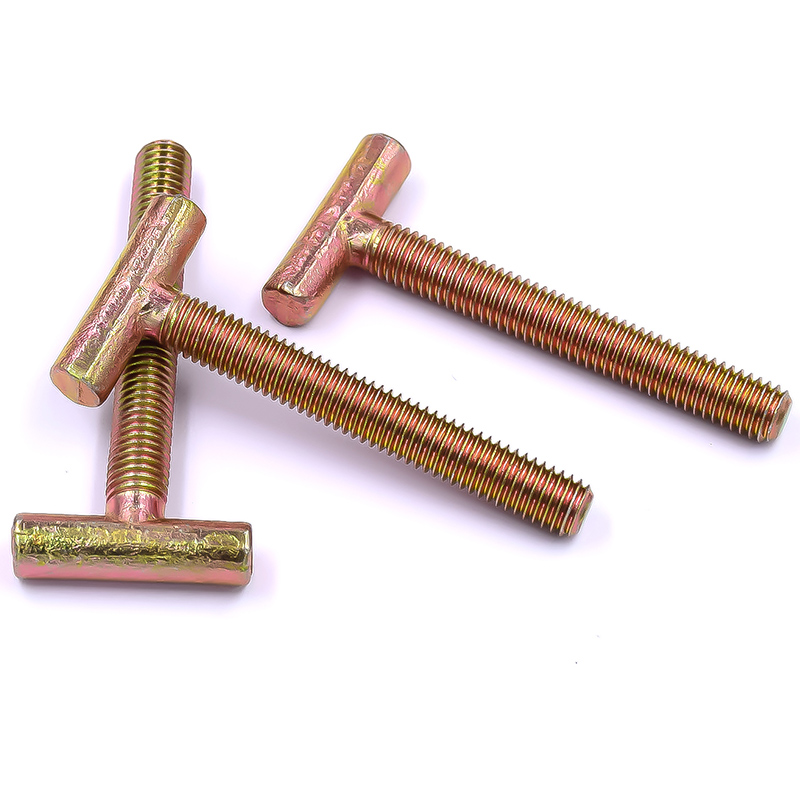

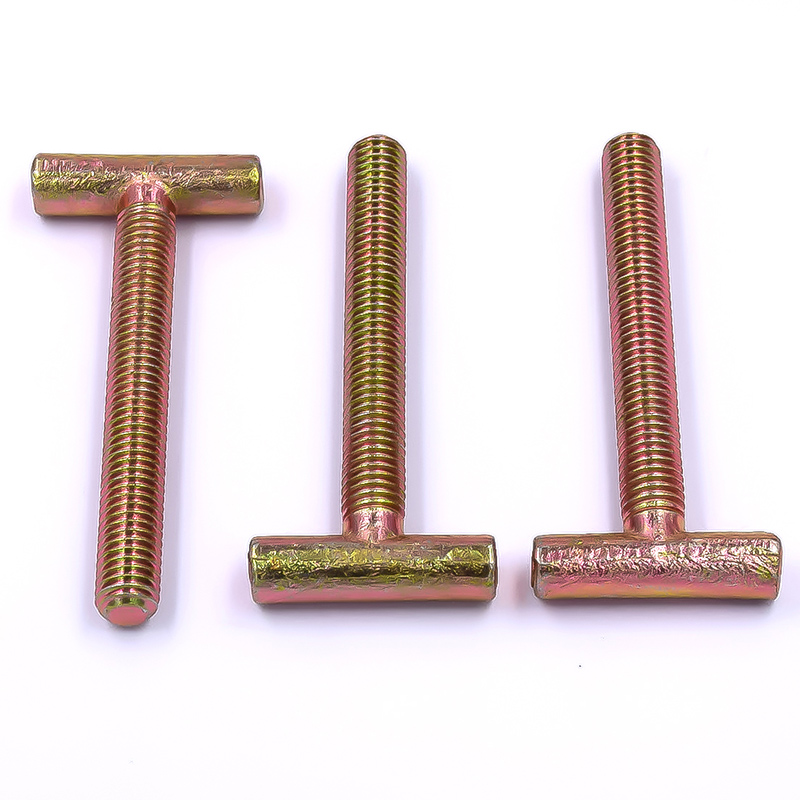

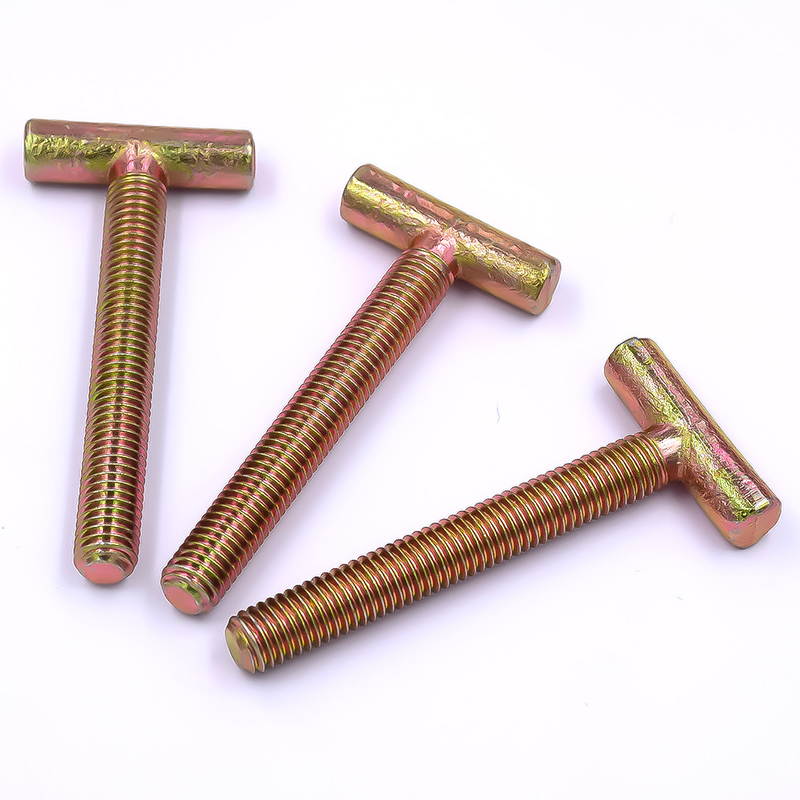

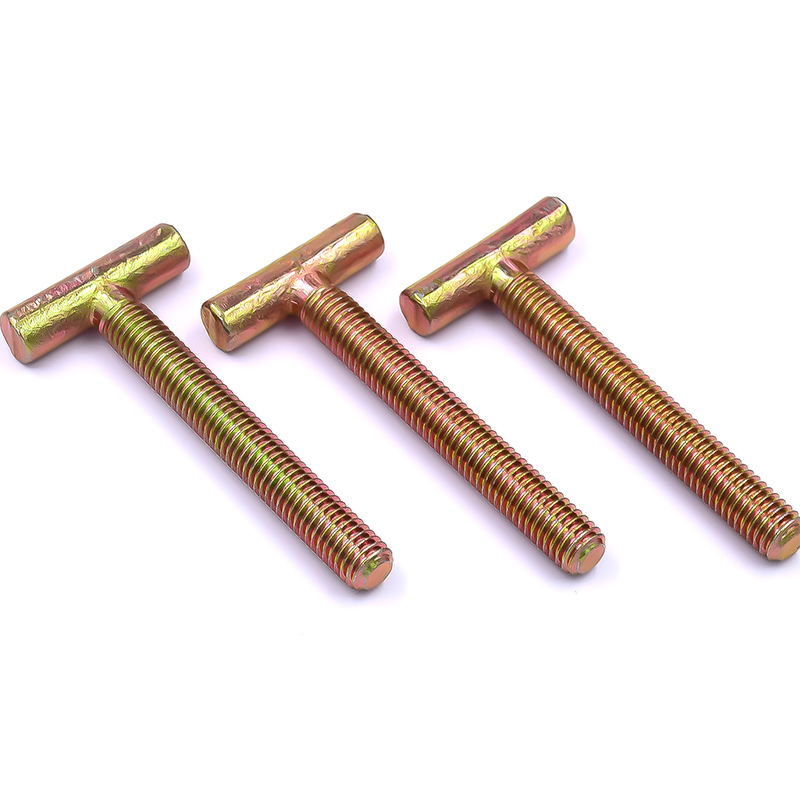

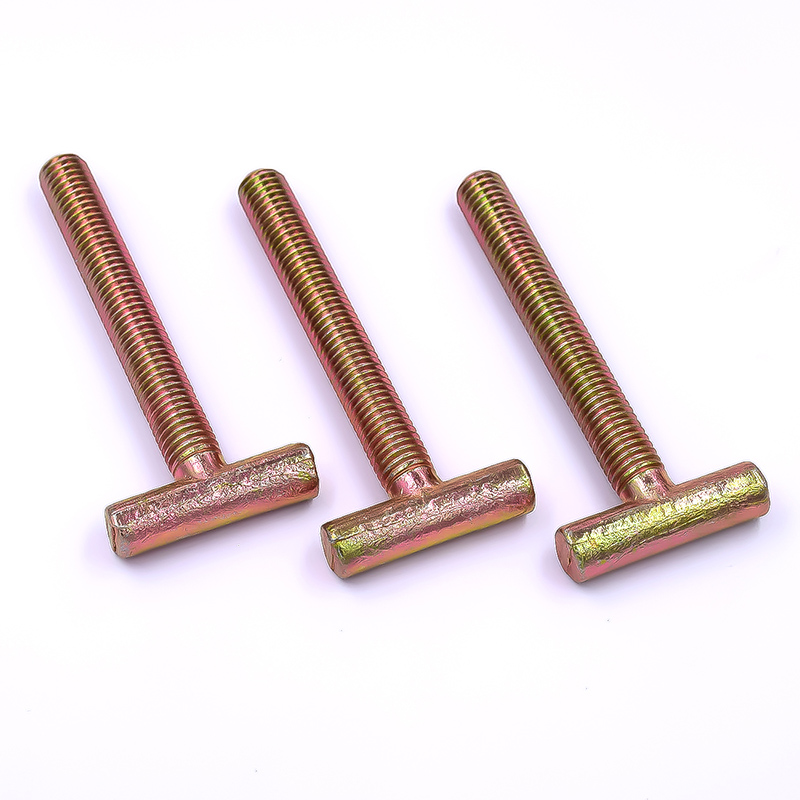

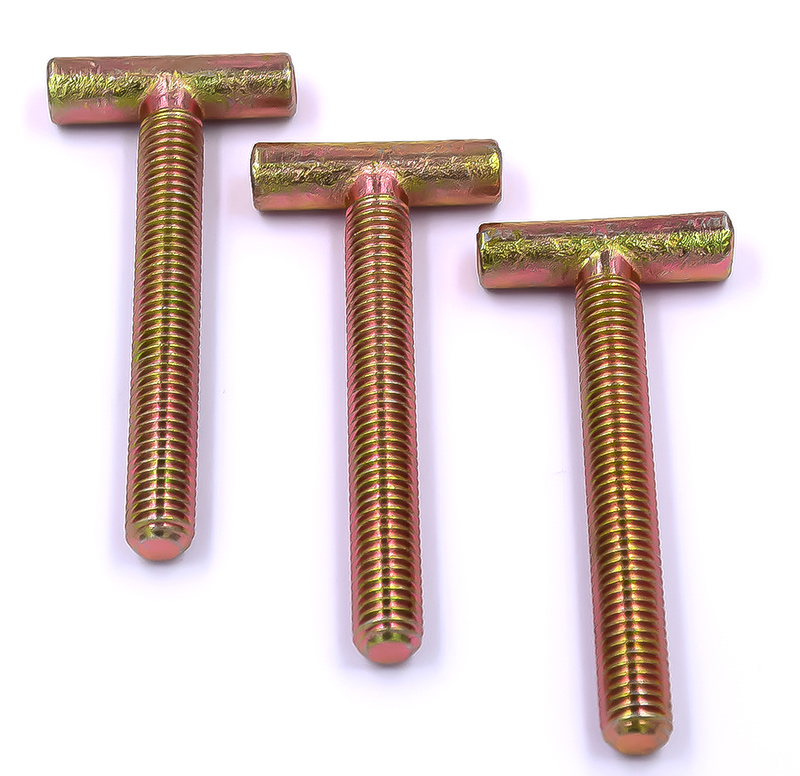

Carbon Steel T-Screws

Product introduction

This bolt is specially designed for use with T-slots (such as mechanical workbenches, aluminum profile slots). When installing, put its slender head along the slot and rotate it 90 degrees. Its long head will be firmly stuck under the slot rail, thereby pre-fixing the bolt in the slot. The workpiece or connection can then be quickly clamped by tightening the nut. It is widely used in industrial aluminum profile frames, mold pressure plates, mechanical equipment workbenches and other scenarios. It is the core connector to achieve modularization, rapid assembly and adjustment, and is famous for its convenient operation and reliable connection.



Product Features

1. Quick pre-fixing and efficient assembly: The T-shaped head design allows the bolts to be placed directly along the T-shaped slot and pre-fixed by rotating 90 degrees. This eliminates the steps of traditional bolt penetration and hole alignment, greatly simplifying the installation process and is especially suitable for scenarios that require frequent adjustments or quick assembly.



2. Stable connection and strong load-bearing capacity: The contact area between the head and the T-slot is large, and the long head provides better force distribution, which can effectively resist forces from all directions (especially vertical tension and vibration during work), prevent the bolt from flipping or loosening in the slot, and ensure the rigidity and stability of the connection.



3. Designed specifically for optimization of profile systems: This specification is a commonly used accessory for industrial aluminum profiles (such as European standards 4040, 4080, etc.). Its size is highly matched to the notch of the profile, and it can be perfectly embedded and make full use of the load-bearing capacity of the profile. It is an ideal connecting element to realize a modular frame structure.



4. High strength and reusable: usually made of high-strength carbon steel or stainless steel, and heat treated and surface treated (such as galvanized) to ensure the durability and anti-corrosion capabilities of the product. The mechanical connection means it can be easily disassembled and reused without compromising its performance.



Product application

1. Industrial aluminum profile frame system: This is the core application field. It is widely used in building automation equipment racks, assembly line workbenches, industrial fences, material racks, ladders and various modular structures. The T-shaped head of the bolt can be easily embedded into the groove of the profile. By matching the nut and flange nut, the profile can be quickly and firmly connected and locked, which is the cornerstone of modular design.



2. Machine tool workbench: Used to install clamps such as pressure plates, flat-nose pliers, and indexing heads on the T-shaped slots of the workbench of milling machines, grinders and other equipment to conveniently and firmly clamp the workpiece.



3. Mold pressure plate fixation: used to fix large molds on injection molding machines, stamping machines and other equipment. Its strong tensile strength ensures production safety.



4. Display and storage facilities: Due to its flexible installation and disassembly, it is also often used in the construction and connection of supermarket display cabinets, stage trusses, and shelf systems, which can meet the needs of frequent layout adjustments.



Product advantages

1. Quick installation and extremely high efficiency: Its core advantage lies in the pre-fixing method that can be completed by "putting it in and rotating it". This eliminates the tedious steps of traditional bolt hole alignment and penetration, enables rapid positioning and assembly, and greatly improves efficiency in production line construction and equipment adjustment. It is especially suitable for scenarios that require frequent disassembly and assembly.



2. Excellent connection stability and load-bearing capacity: The long head design makes the contact area with the T-slot larger and the force distributed more evenly. This provides excellent tensile strength and shear resistance, which can effectively prevent the bolt from flipping or loosening in the groove under heavy load or vibration environment, ensuring the rigidity, safety and reliability of the connection.



3. Perfect compatibility with the profile system: This specification is specially designed to optimize the T-slot of industrial aluminum profiles and has excellent compatibility. It can be perfectly embedded in the groove, making full use of the load-bearing characteristics of the profile system, and is an ideal connector to achieve modular and standardized design.



4. Flexible, adjustable and reusable: The bolt can slide easily in the T-shaped slot to achieve stepless adjustment, which provides great convenience for accurate positioning. The mechanical connection method allows it to be easily disassembled and reused without compromising its performance, reducing maintenance and modification costs.



FAQ

Q1: Where is it mainly used?

A1: It is specially designed for equipment with T-slots or dovetails. The main applications include:

Industrial aluminum profile frame: used to build automation equipment racks, workbenches, safety fences, etc.

Mechanical equipment workbench: used to install fixtures and molds (such as flat-nose pliers, pressure plates).

Mold fixing: fixing large molds on injection molding machines and presses.

Display racks and shelving systems.



Q2: How much force can it withstand?

A2: The load-bearing capacity depends on the material of the bolt (such as carbon steel, stainless steel) and strength grade. Its 30mm long head provides excellent tensile and shear resistance. However, please refer to the mechanical performance report of the product for specific values, and overloading is strictly prohibited.



Q3: Can this bolt be reused?

A3: Yes. It is a purely mechanical connection and disassembly will not damage the bolts. Simply loosen the nut and reverse-rotate the bolt 90 degrees to remove it from the slot, ideal for applications requiring frequent adjustments and repeated assembly.
