Custom-Made Non-Standard Screws For Stainless Steel Fasteners

Product introduction

This product is a classic special-shaped screw. The core feature is the unique square neck under the head. As a professional non-standard screw, its square neck design can block the workpiece during installation, effectively prevent the screw from rotating, and has excellent anti-loosening performance. We provide a variety of materials from carbon steel to alloy steel, and can develop non-standard customized screws according to drawings, which are widely used in agricultural machinery, wooden structures and various types of heavy equipment that require one-sided fixation.



Product design and features

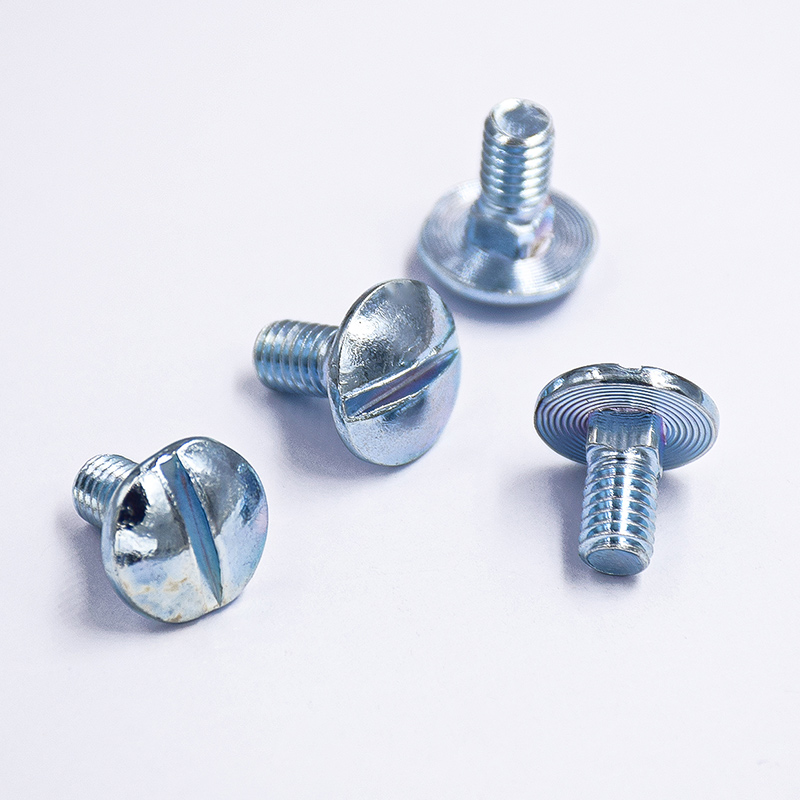

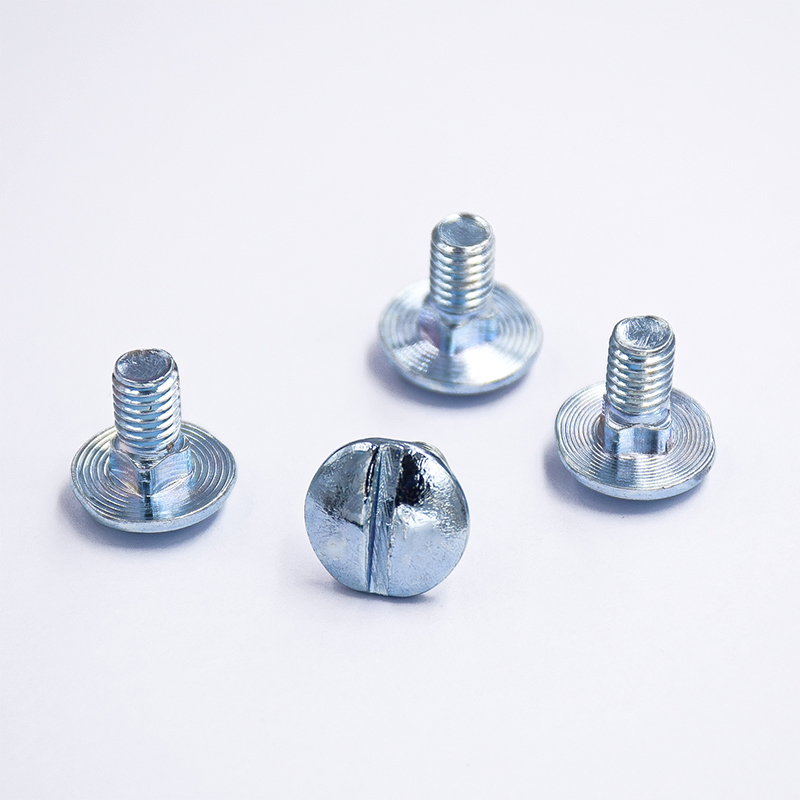

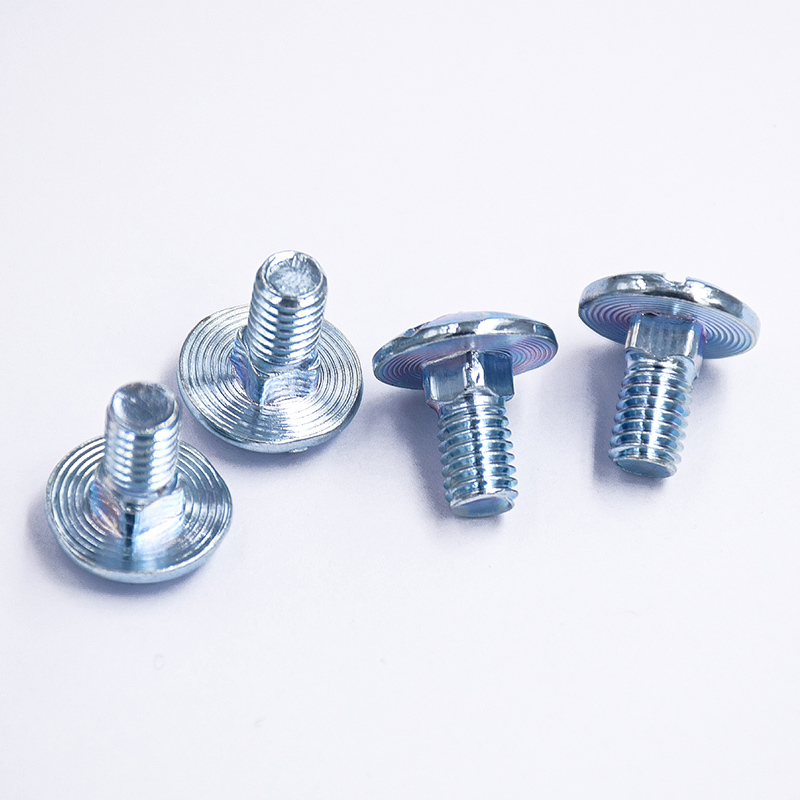

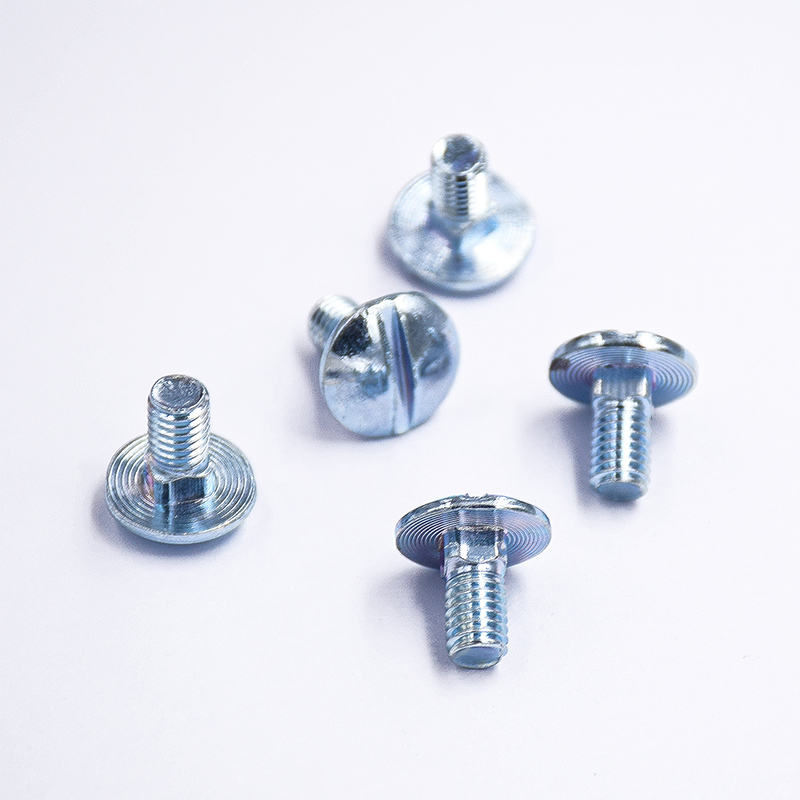

In the fastener family, the slotted square neck screw is a highly recognizable special-shaped screw. It combines the oldest straight-line drive with the most reliable square neck anti-loosening structure. It seems simple, but it contains irreplaceable mechanical wisdom.

Core anti-loosening mechanism: square neck. The most striking feature of this product is that the top of the screw is designed with a square or rectangular neck immediately adjacent to the head. When this special shape of screw is installed, the square neck will be completely stuck into the square hole of the supporting workpiece (such as agricultural machinery, wooden slide rails or specific metal grooves), thus effectively preventing the screw from rotating when the nut is tightened. This fundamentally solves the installation problem of ordinary bolts under working conditions where one side cannot be fixed.



Classic slot drive: The head adopts a standard slot design. Although it seems traditional, in certain fields (such as plows that require frequent adjustments or maintenance of old equipment), the slot is still the most intuitive way to operate and the easiest way to clean mud and sand. For environments that require special anti-tampering or specific torque, we can also develop non-standard custom screws based on this basis.



Various head geometries: According to different application scenarios, slotted square neck screws can be subdivided into various head forms such as round heads, semi-round heads, and countersunk heads (countersunk heads). The countersunk head design allows the screw to be fully embedded into the surface of the workpiece to maintain a smooth appearance; the round head provides a larger supporting surface.



Materials and application areas

As a classic non-standard screw (some specifications have industry standards, but a large number of demands are non-standard), its material selection directly determines its service life in harsh environments.

Commonly used materials and properties

Carbon steel (grade 4.8/8.8): The surface is treated with blue and white zinc, colored zinc or hot-dip galvanizing. It is suitable for general machinery and wooden building connections.

Alloy steel (grade 10.9): After quenching and tempering heat treatment, it obtains high strength properties and is used for heavy equipment that can withstand huge shear forces.

Stainless steel (304/316): has excellent corrosion resistance and is suitable for food machinery, chemical equipment and outdoor garden tools.



Typical application areas

Agricultural machinery: As a special-shaped screw, it is the first choice for fixing plow blades, rotary cultivator blades, and lawn mower chassis. The square neck structure can easily cope with severe vibration and impact.

Logistics and warehousing: used for shelf track connection and pressure plate fixation of wood-plastic platforms.

Rail transit and wooden structures: In the laying of wooden floors in train carriages, the restoration of ancient buildings, and outdoor wooden planks, the square neck can perfectly fit into the prefabricated trough to prevent the connection from loosening after the wood cracks.

Valves and fittings: shaft fixing screws used as specific handles or stop structures.



Quality control and certification system

For non-standard custom screws, dimensional tolerance control is the key to achieving the anti-loosening function. Our quality control system revolves around "neck fit" and "head strength":

Precision mold control: Use high-precision cold heading or hot forging processes to ensure that the R-angle and straightness errors of the square neck part are controlled within ±0.1mm, ensuring a perfect fit with the square hole of the workpiece.

Hardness and toughness testing: For batches with high strength requirements, Rockwell hardness testers and impact testing machines are used for testing to ensure that the screws will not break brittlely when subjected to huge shear force.

Coating thickness analysis: For outdoor applications, an X-ray fluorescence thickness gauge is used to monitor the thickness of hot-dip galvanizing or Dacromet coating to ensure that the salt spray test time meets customer requirements (such as 240h, 720h).

Certification system: The factory has passed ISO 9001:2015 quality system certification, and all export-grade products can provide material certificates that comply with EN 10204 3.1 standards.



Customized services

Although there are some old standards for slotted square neck screws (such as GB/T 14, DIN 603, etc.), the diversity of modern industry has created a large demand for non-standard customized screws. We are committed to providing you with highly flexible customized solutions:

Head shape customization: On the basis of the standard round head or countersunk head, the slot can be changed to a cross recess, an inner hexagon or a plum blossom slot, which facilitates the installation of power tools and realizes the drive upgrade of non-standard customized screws.

Square neck size customization: According to the depth and width of the slot hole in your workpiece, adjust the length, width and edge distance of the square neck to make it fit more closely and eliminate excessive space.

Customization of overall length and tooth shape: from extremely short thin locking dies to extra long through threads, as well as thick and thin threads, full threads or half threads, all can be produced on demand.

Special material customization: such as duplex steel 2205, Monel alloy and other materials resistant to strong corrosion environments.



FAQ

Q: Are slotted square neck screws standard parts? Why can’t I buy the exact matching specs?

A: Although there are national standards (such as GB 14) or German standards (DIN 603) for reference, the scope of specifications covered by these standards is limited. In practical applications, many devices will fine-tune the square neck size and head thickness for specific anti-loosening or assembly requirements, which turns them into non-standard screws. If you can't find suitable specifications, contacting us directly for non-standard custom screw procurement is the best solution.



Q: Compared with ordinary bolts and spring washers, what is the better anti-loosening effect of this special-shaped screw?

A: Ordinary elastic pads mainly rely on friction to prevent loosening and are prone to failure under severe vibration. Slotted square neck screws are mechanically locked: the square neck is stuck in the slot, physically preventing the screw from rotating. As long as the nut does not fall off, the screw will never rotate. This kind of rigid anti-loosening is incomparable to friction and anti-loosening.



Q: Can these screws be used in outdoor wooden buildings? Will it rust?

A: Very suitable for outdoor wooden buildings (such as pavilions, wooden bridges, wooden planks). However, in order to prevent rust, we strongly recommend using hot-dip galvanized or stainless steel 304 slotted square neck screws. Especially the countersunk head style, which is screwed into the wood and covered with a wooden plug, is both beautiful and durable.

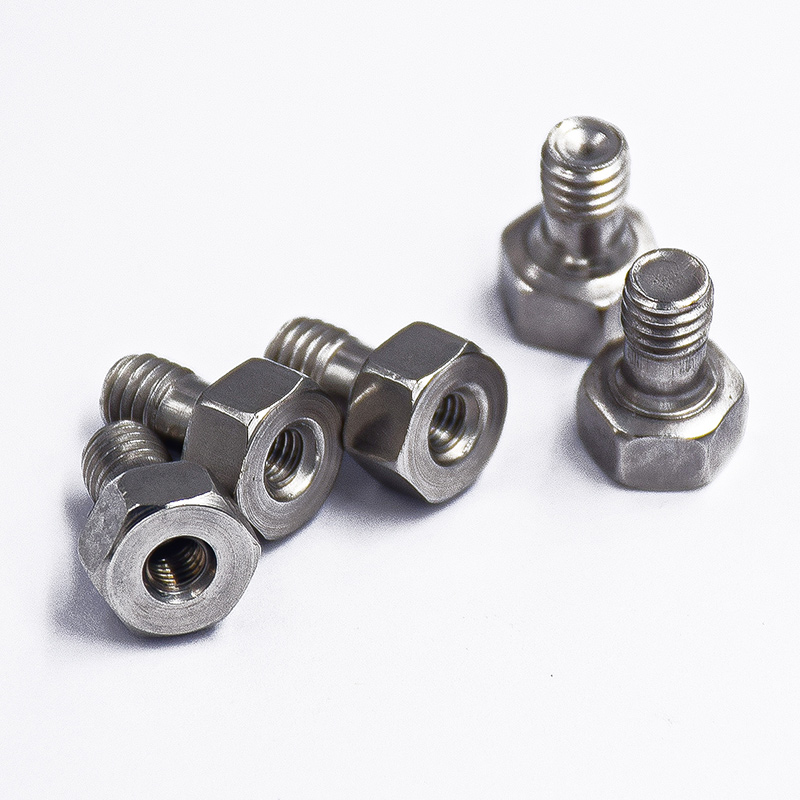

Stainless Steel Non-Standard Screws With Set External Hexagonal Fastening And Internal Thread

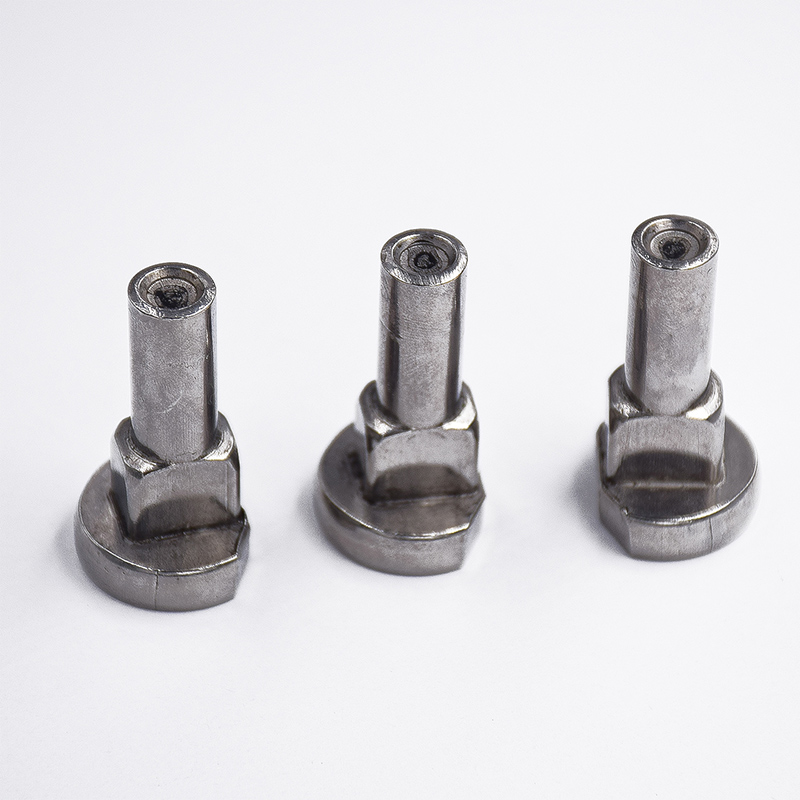

Stainless Steel Non-Standard Irregular Head Screws

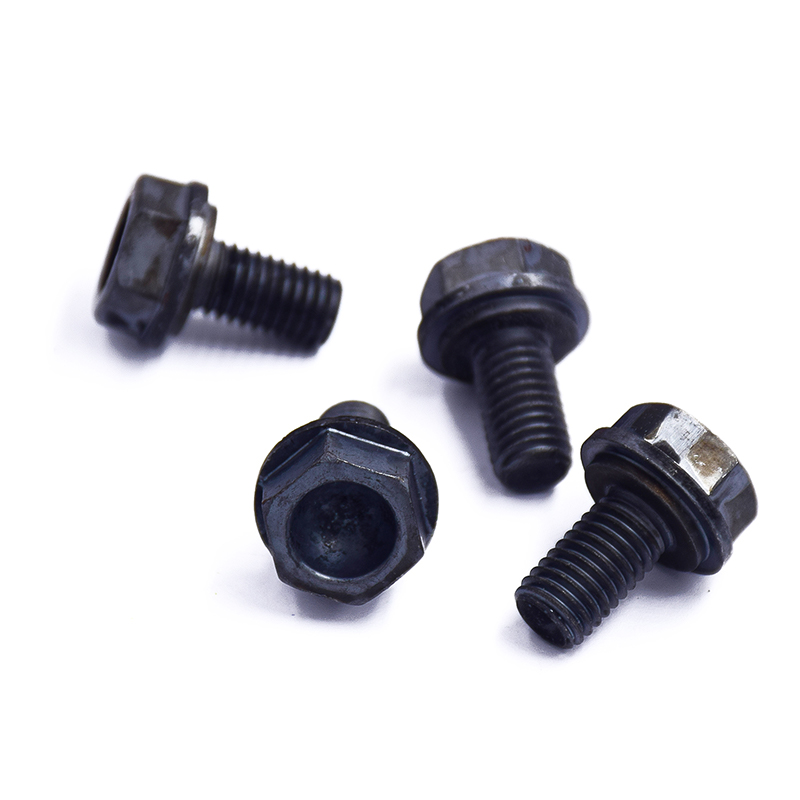

Custom-Made Hexagonal Flange Surface Non-Standard Screws

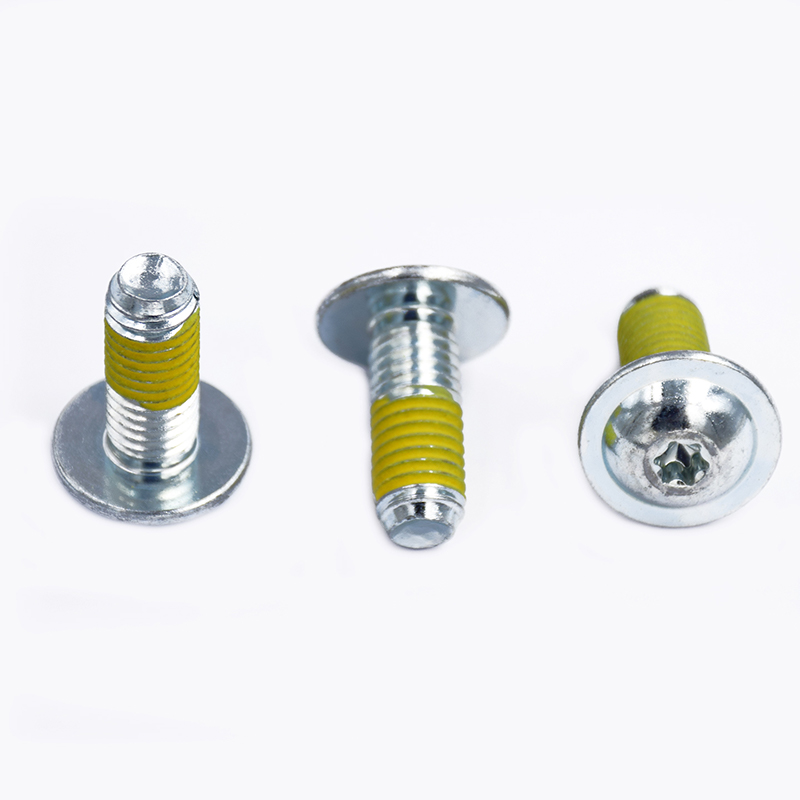

Pan Head Inner Torx Non-Standard Screws With Pad And Glue
