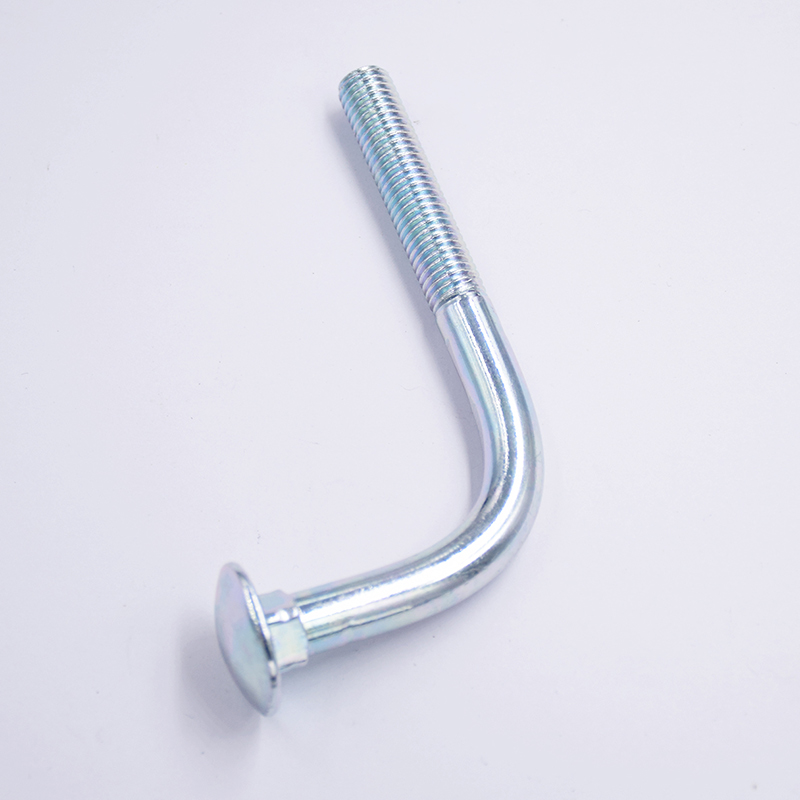

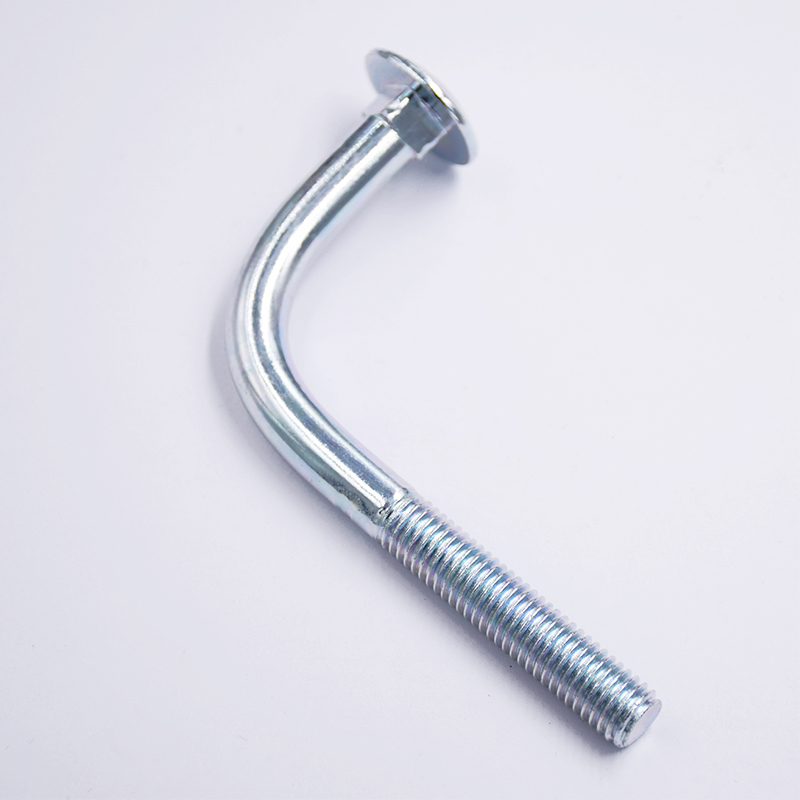

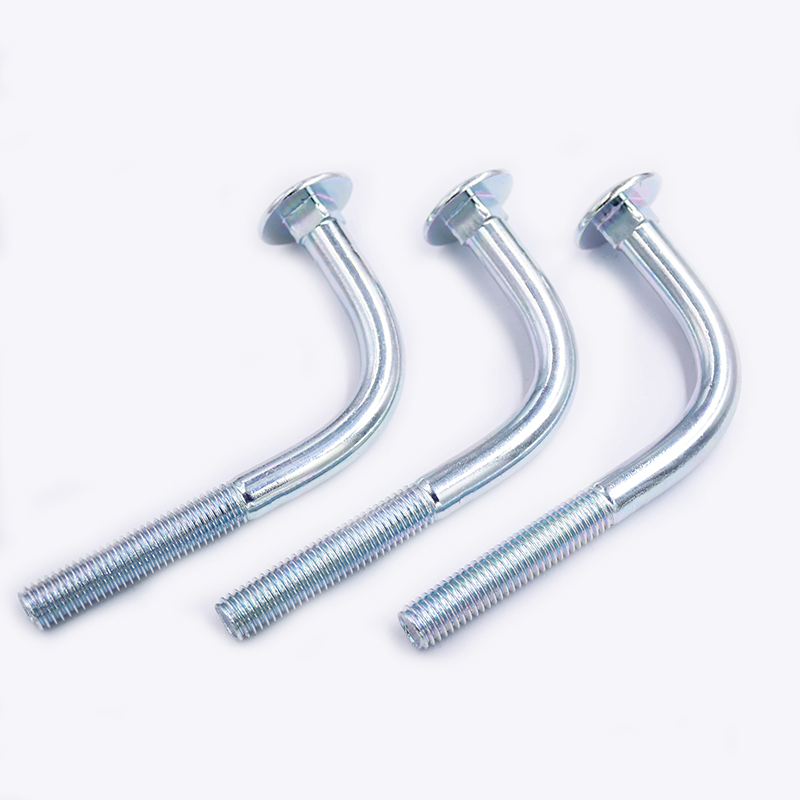

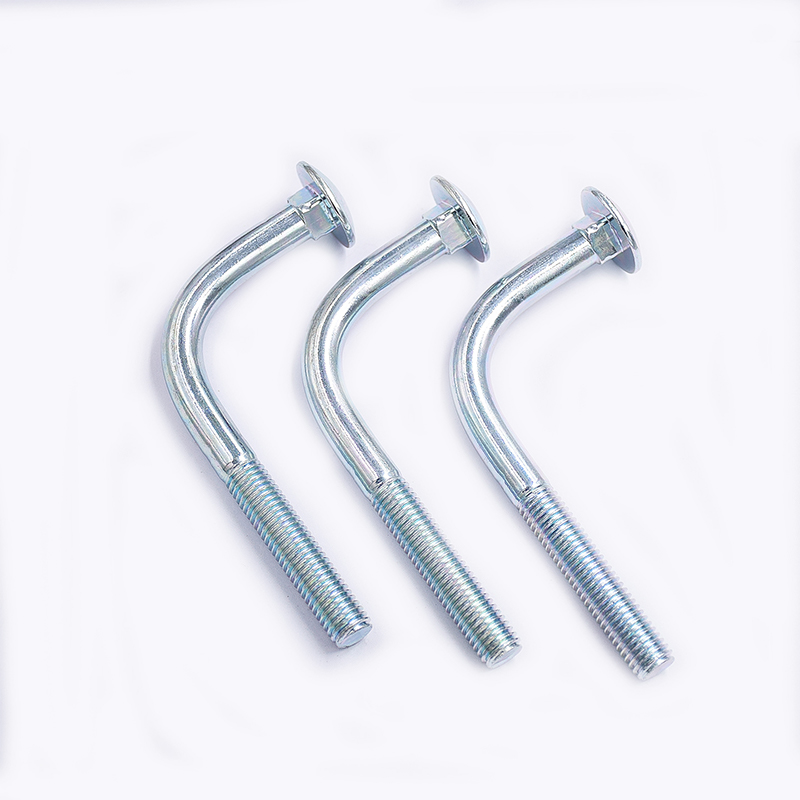

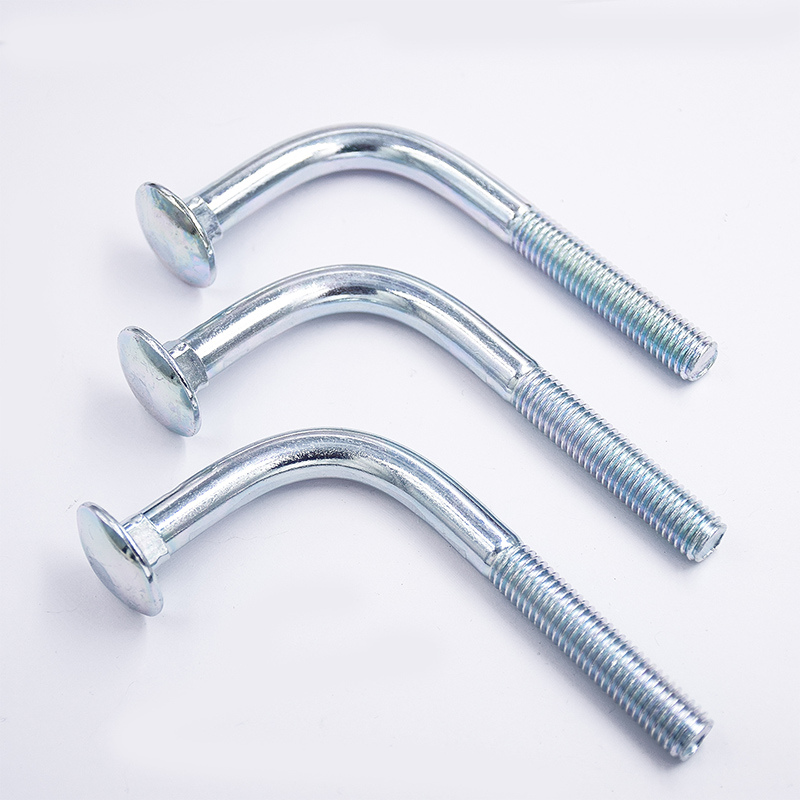

Square Neck Bending Bolts For Carriages

Product introduction

Carriage square neck bending bolts, also known as bent neck square bolts or L-shaped square neck bolts, are special structural connectors manufactured through precision cold heading and bending processes. It creatively bends the stem of the straight bolt at a specific angle and combines it with an anti-rotation square neck structure to perfectly solve the complex needs of special-shaped connections, spatial interference and anti-rotation loosening. As a typical type of customized special-shaped screws, they are designed to cope with complex working conditions that cannot be met by standard fasteners. Today, relying on the strong Chinese manufacturing supply chain system, this type of customized non-standard bolts can achieve the perfect balance of rapid response, high-precision production and cost control, and have become indispensable key connection parts in high-end equipment, special equipment and infrastructure.



Product design and features

Bending rod design: The rod can be bent into 90°, 60° or any other customized angle according to the installation space requirements to form a stable L-shaped or V-shaped structure.

Arc transitions are used at the bends to avoid stress concentration and ensure mechanical properties.

Anti-rotation square neck design: A precise square cross-section is machined under the bolt head. During installation, the square neck snaps into the pre-processed square hole or groove of the workpiece, fundamentally preventing the bolt from rotating when the nut is tightened or during equipment vibration.

The coaxiality of the square neck and the rod is strictly controlled to ensure smooth assembly.



Material, technology, core performance

Diverse materials: carbon steel, alloy steel, stainless steel, brass, etc. can be used to meet different strength and corrosion resistance requirements.

Exquisite craftsmanship: Multi-station cold heading is used to ensure the dimensional accuracy of the head and square neck, and subsequent precise angle bending is performed through a special mold to ensure that the thread accuracy is not damaged throughout the process. Non-standard parts made in China are very mature in such complex processes.



Functions and application areas

Spatial adaptation: The bending structure can bypass obstacles and connect two components that are not on the same plane.

Reliable anti-loosening: The combination of the square neck and the notch provides mechanical anti-rotation, which is more reliable than relying solely on friction.

Quick positioning: The square neck itself can be used as a positioning reference in the early stage of installation to facilitate assembly.



Typical application areas

Rail transportation: connection of railway freight cars, locomotive chassis, track pressure plates and other special-shaped structures.

Heavy machinery: Corner joints that require large preload force and anti-loosening in engineering machinery, agricultural machinery, and mining equipment.

Electric power and new energy: fixed ladders, transformer brackets, and special-shaped supports for photovoltaic arrays inside wind power towers.

Special vehicles and ships: fastening of cabins, frames, and equipment bases in narrow or non-linear spaces.

Industrial equipment: automated production line modules, large racks, parts of textile machinery that require special angle fixation.



Quality Control and Certification Standards

As the key to customized non-standard bolts, their quality control runs throughout:

When raw materials enter the factory, chemical composition and mechanical properties will be tested, and the bending angle, square neck size, and thread pass and stop gauges will be fully inspected or a high-ratio random inspection will be carried out. Monitor assembly performance using the torque-rotation method or axial force sensors.



Dimensional inspection: Use a three-dimensional coordinate measuring instrument to conduct precise inspection of key shape and position tolerances. Performance testing: Conduct mechanical tests such as tensile strength, yield strength, hardness, fatigue life, etc. Environmental testing: Conduct salt spray test (such as neutral salt spray NSS for more than 500 hours), high and low temperature cycle test, etc. as required.



Certification and standards: Production can be based on GB/T (Chinese national standards), ISO (international standards), or customer-specified DIN (German standards), ANSI/ASME (American standards), etc. Enterprises usually hold ISO 9001 quality management system certification, and some involving special industries (such as rail transit) must also comply with industry-specific standards such as IRIS. Each batch of non-standard parts made in China can provide complete material reports, mechanical performance reports and factory inspection reports.



Customized services

We understand that standard parts cannot solve all problems, so we provide a full range of customized special-shaped screw services:

Collaborative design: Customers provide drawings, samples or working condition descriptions, and our engineers will participate in optimized design to ensure product manufacturability, economy and reliability. Parameter customization: diameter, length, bending angle and direction, square neck size, thread type and length can all be customized. Material selection: from economical carbon steel to high-strength alloy steel, corrosion-resistant stainless steel and specialty alloys. Surface treatment: galvanizing, hot-dip galvanizing, Dacromet, mechanical galvanizing, oxidation blackening, nickel plating and other options are available. Quick response: Thanks to the flexible supply chain made in China, we can provide full support from proofing, small batch trial production to large-scale supply, shortening the delivery cycle. Technical support: Provide value-added services such as installation guidance, mechanical calculation support and failure analysis.



FAQ

Q: What is the minimum order quantity (MOQ) for customizing a non-standard bolt like this?

A: As a professional supplier of customized non-standard bolts, we understand our customers’ needs for R&D and maintenance. Usually, the MOQ for small batch trial production can be 500-1000 pieces, depending on the material and process complexity.



Q: How to ensure the bending angle accuracy and strength of customized bolts?

A: We use CNC bending equipment with angle feedback, and the accuracy can reach ±0.5°. For products with high strength requirements, stress relief annealing will be performed after bending, and appropriate materials and heat treatment processes (such as quenching and tempering) will be selected to ensure that the mechanical properties of the bends meet the standards.



Q: How long does it usually take from design confirmation to receipt of samples?

A: For conventional materials and processes, the sample delivery cycle is generally 15-20 working days. Customized special-shaped screws with complex structures may require longer time for process verification, and we will maintain transparent communication with our customers.
