CNC Machined Stainless Steel Ball Head Bolts for Industrial Machinery

Product Overview

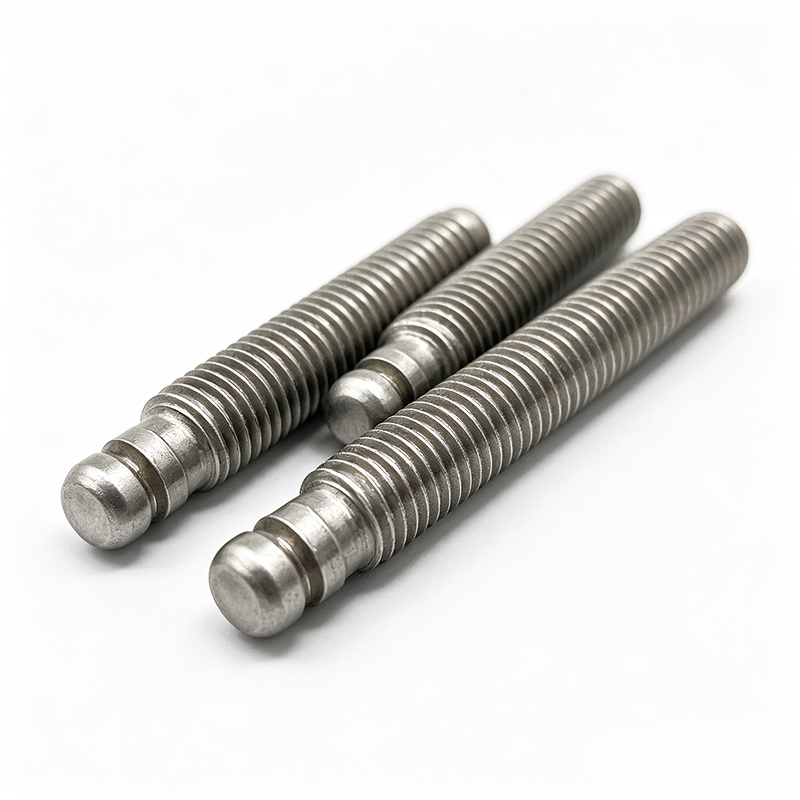

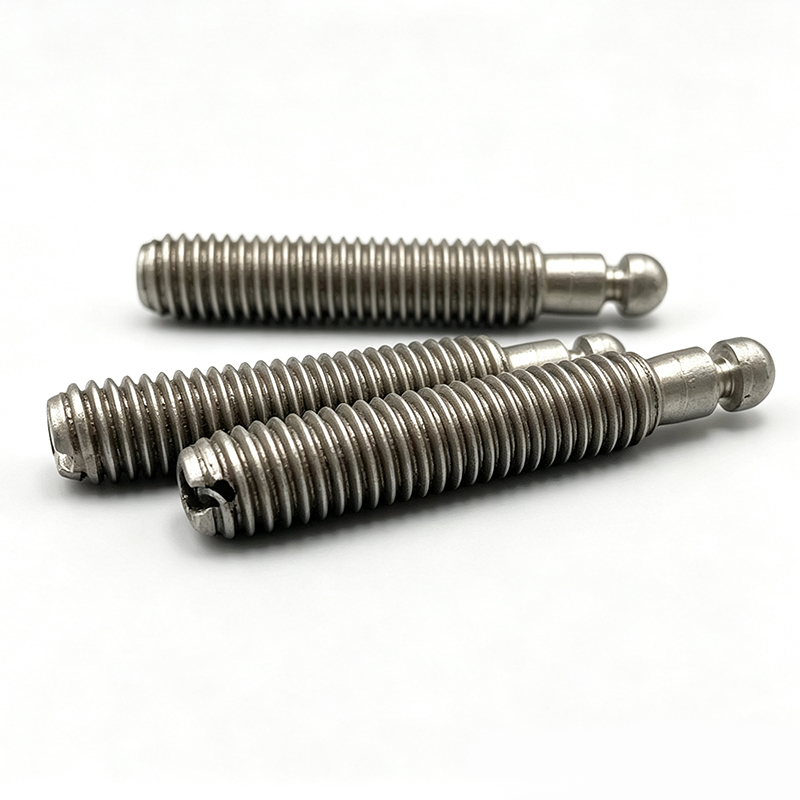

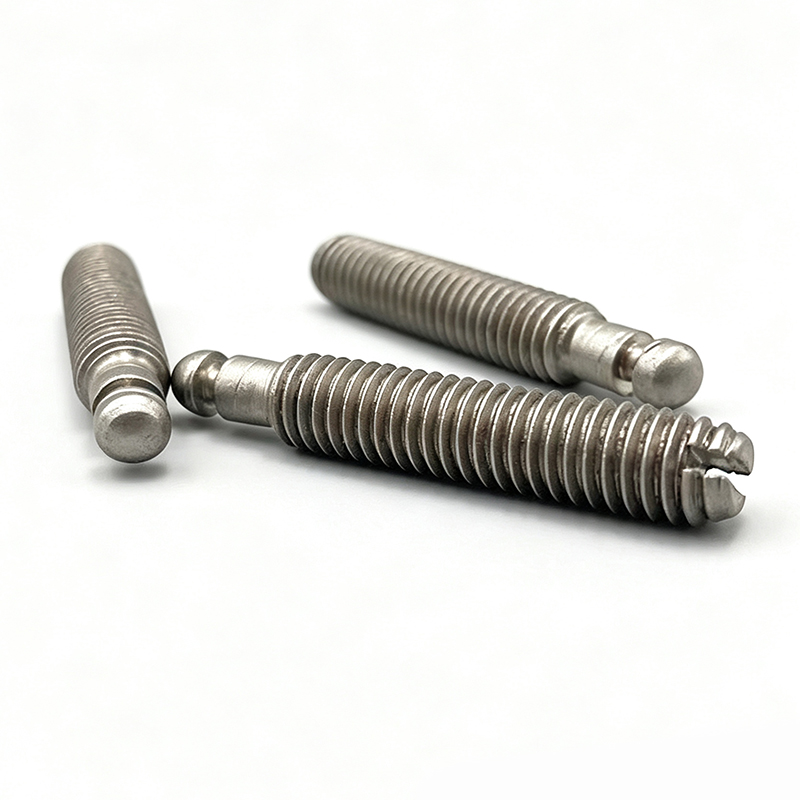

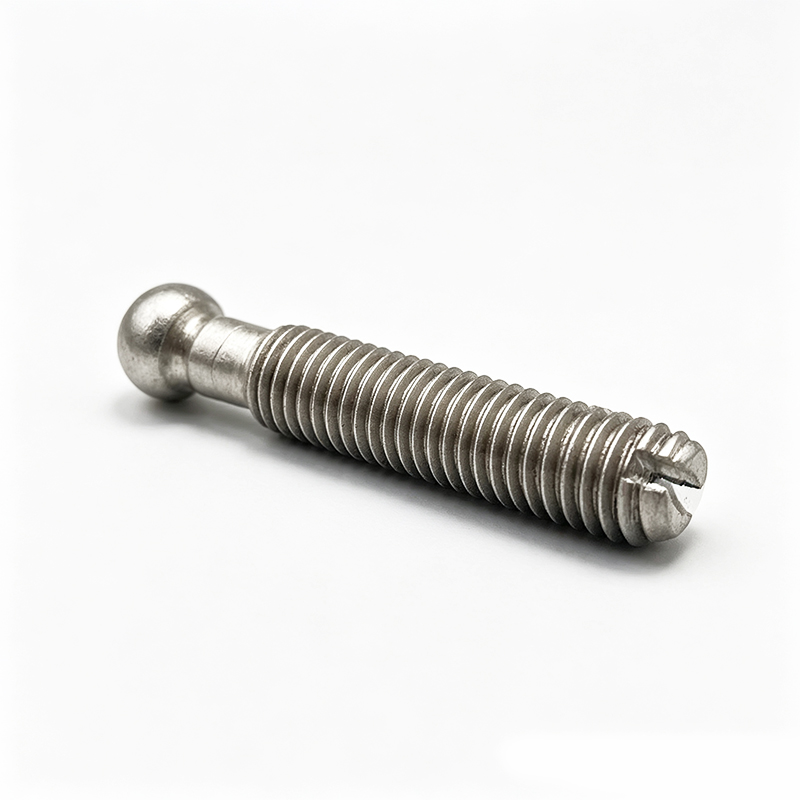

This product is a ball-end stud (ball stud) with a smooth precision ball head at one end and a threaded shaft with a slotted flat end at the other. It is a metal fastening and connection component that combines flexible articulation with threaded adjustment. Machined from one piece of high-quality metal, it features a smooth, well-formed ball head and clear, uniform threads, allowing flexible multi-angle articulation and accurate positioning with matching ball sockets or joint components. The end slot enables precise adjustment of the installation position with a common tool. Available in a range of sizes, it is widely used in machinery, jigs and fixtures, hardware fittings, fitness equipment and other applications requiring ball-end connections or threaded adjustment.



Product Features

Precision ball head: The spherical head is smooth, uniform and precisely dimensioned, working flexibly with matching ball sockets or joint components for multi-angle articulation and accurate positioning.

High-precision threads: The threads are clearly formed, uniform and complete, ensuring smooth engagement and reliable locking, and allowing precise adjustment of the screwed-in length and assembly position.

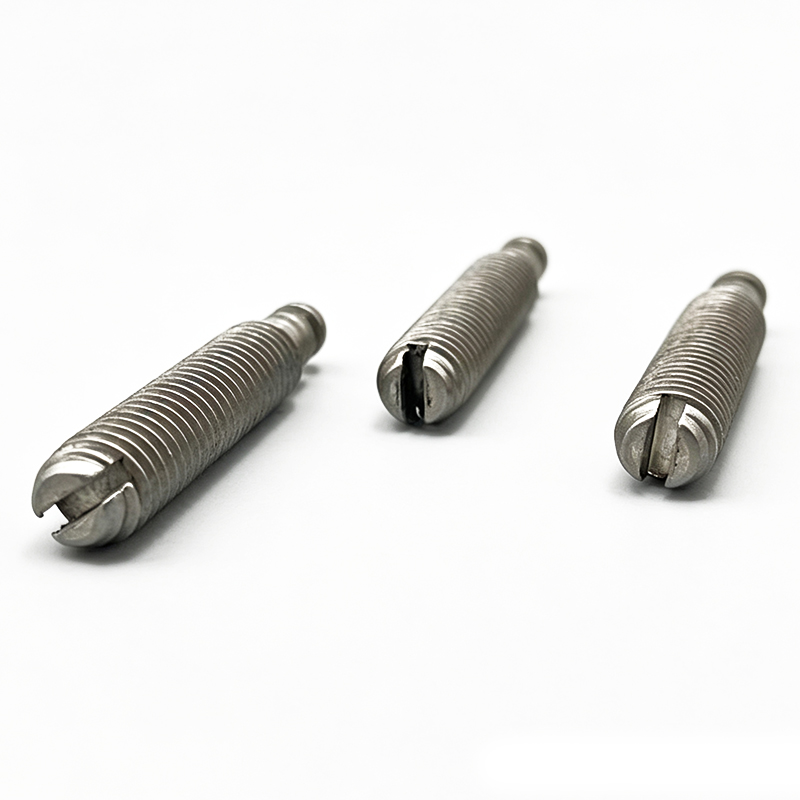

Slotted adjustment end: The slot at the flat end allows quick rotation and adjustment with a screwdriver or similar tool, making installation, fine adjustment and removal convenient.

Corrosion-resistant surface: The silver-gray matte machined finish provides good rust and corrosion resistance for a variety of working environments (subject to the actual material and finishing process).

One-piece solid construction: The ball head, neck and threaded body are machined from one piece with no welded weak points, providing higher strength and overall reliability.



Application Field

This product is widely used in applications requiring articulated connections or threaded adjustment and positioning, including machinery and automation equipment, jigs and fixtures, furniture and door/window hardware, fitness equipment, and vehicle or outdoor equipment accessories. It is especially suitable for connection points that need multi-angle articulation or precise adjustment during assembly.



Instructions for use

Selection: Choose the appropriate specification according to the mounting hole and adjustment requirements, and check the ball head, threads and end slot for any damage.

Installation: Screw the threaded end into the mounting hole, using a nut and washers when required, and ensure full thread engagement for a firm connection.

Adjustment: Rotate the stud to position the ball head as needed; use the end slot with a screwdriver for fine adjustment, then lock the nut to secure the position.

Inspection: After assembly, confirm the connection is firm and the ball head moves freely without sticking; in vibrating applications, inspect and re-tighten periodically.



Maintenance

Cleaning: Clean oil and dirt from the surface in time and store the studs in a dry, ventilated place to prevent corrosion.

Lubrication: Apply a small amount of grease to the ball-head mating surface periodically to keep it moving smoothly and reduce wear.

Wear inspection: Check the ball head and threads for wear regularly and replace any abnormal parts in time.

Proper use: Avoid overloads and rough impact, and never reuse damaged or deformed parts.



FAQ

Q: What material and surface finish does this ball-end stud have?

A: It is machined from one piece of high-quality metal with a silver-gray matte finish for good rust and corrosion resistance. The specific material grade and finishing process are subject to the product specification.



Q: What is the function of the ball head?

A: The smooth precision ball head works with matching ball sockets or joint seats to provide multi-angle articulation or flexible positioning, ideal for connection points that require angular adjustment.



Q: What is the end slot used for?

A: The slot allows the stud to be rotated with a screwdriver or similar tool for precise adjustment of the installation position, and also makes installation and removal convenient.



Q: How to select the right specification?

A: Choose the diameter, length and thread specification according to the mounting hole size, connection length and load requirements. Provide your installation parameters for sizing assistance.



Q: How to extend the service life?

A: Keep the surface clean, lubricate the ball-head mating surface regularly, avoid overloads and impact, and inspect for wear periodically, replacing abnormal parts in time.
