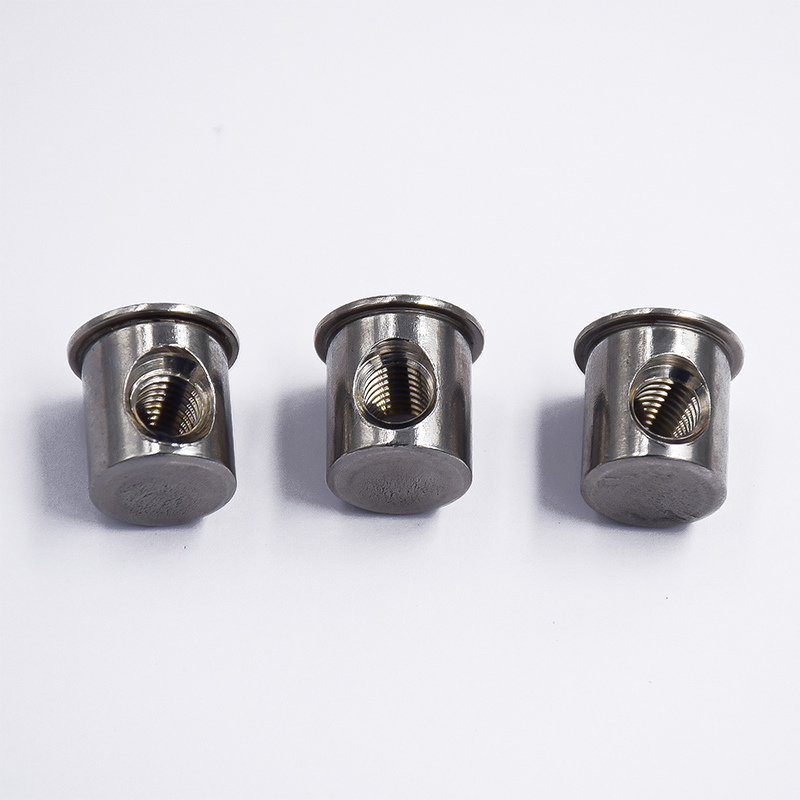

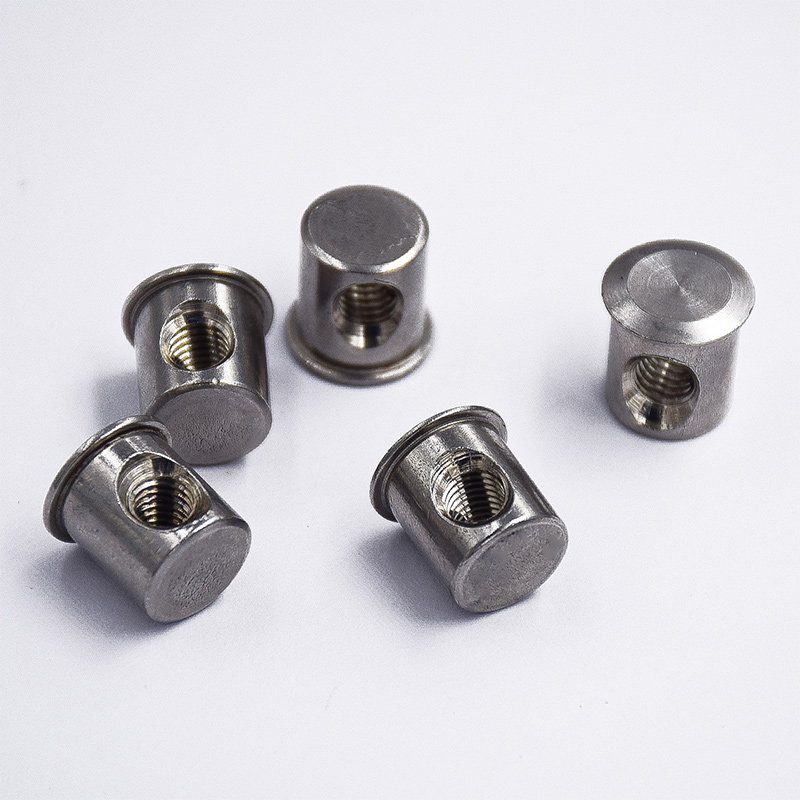

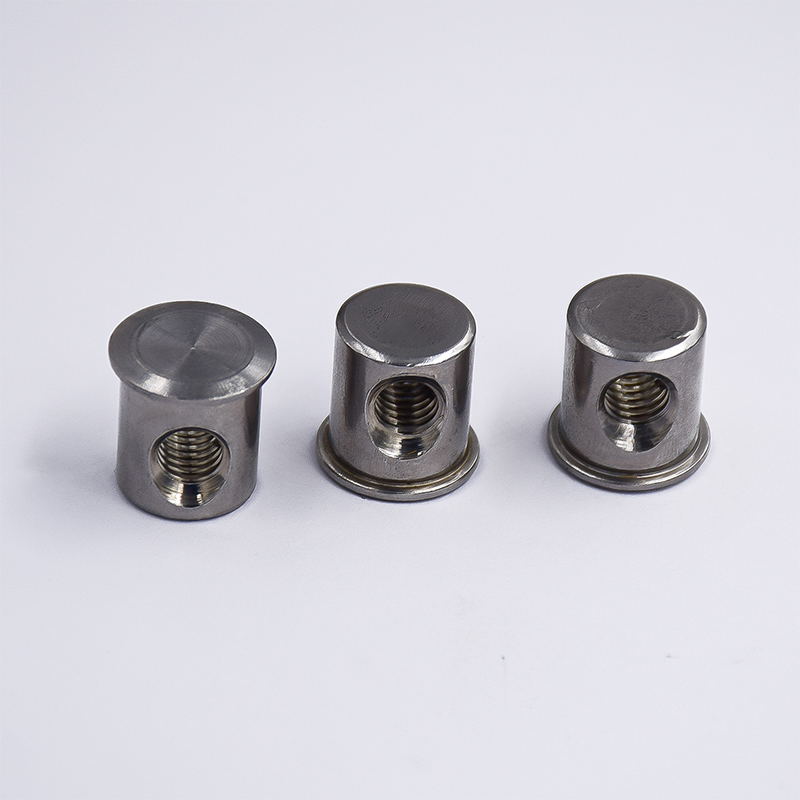

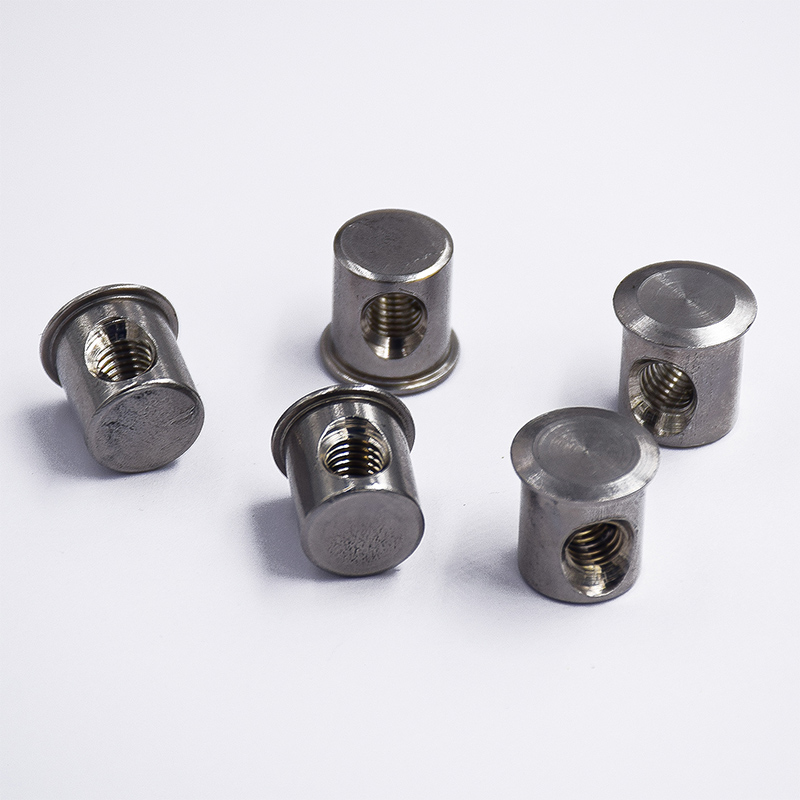

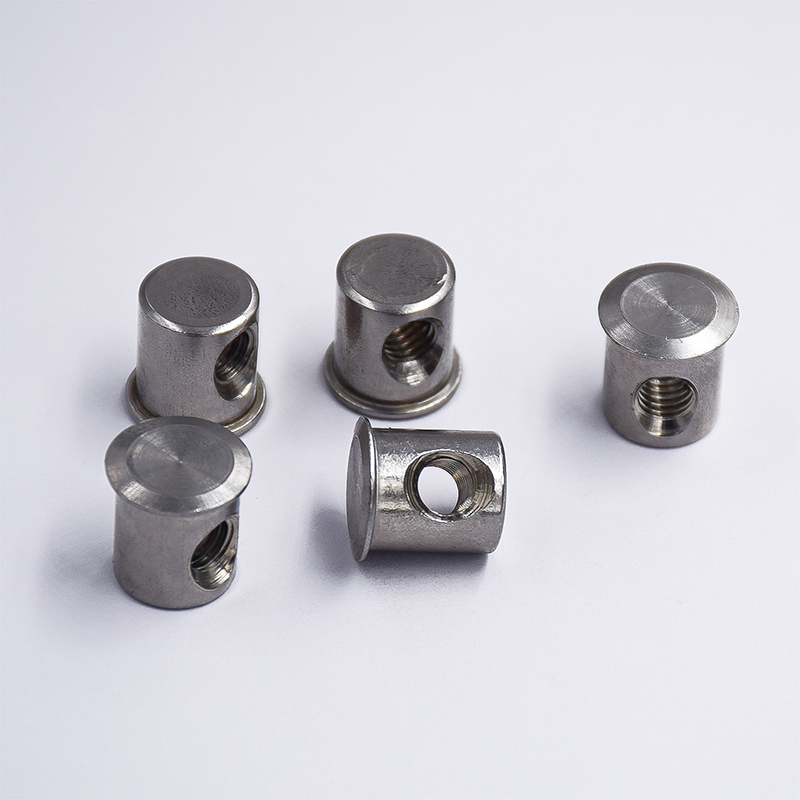

Stainless Steel Non-Standard Cross Hole Hammer Nuts

Product introduction

The stainless steel cross-hole hammer nut is a nut with a special shape. The cross-hole design on the side allows quick installation with bare hands and can be operated without a wrench. As a high-quality auto parts nut, it is widely used in engine mounts, suspension systems and other scenarios. We support the customization of non-standard nuts and can produce products of different specifications, materials and surface treatments according to drawings to meet the connection needs under harsh working conditions.



Product design and features

Cross-hole hammer nut, named for its side cross-holes and unique hammer shape, is a typical special-shaped nut. It breaks through the design limitations of traditional hexagonal nuts. Through the horizontal hole structure on the side, it realizes the function of quick adjustment and disassembly or fixation without completely unscrewing it.

Innovative cross hole structure: The side of the nut is designed with a through cross hole, which can be used with pins, wrenches or other tools. This structure allows the operator to easily tighten or loosen the device by inserting a round rod without a wrench in a narrow space or in scenarios that require quick disassembly and assembly, greatly improving assembly efficiency.

Hammer-shaped design: The main body of the nut is in the shape of a hammer head. The flat design increases the contact area with the workpiece, effectively preventing loosening. It is especially suitable for working conditions with vibration or impact.

Flexible adaptability: As a non-standard nut, the length, cross hole diameter, and thread specifications of the cross-hole hammer nut can be flexibly adjusted according to the installation space and force requirements to meet diverse mechanical design needs.



Materials and application areas

304 stainless steel: Excellent comprehensive performance and strong corrosion resistance, suitable for general industrial equipment, food machinery and outdoor facilities.

316L stainless steel: For highly corrosive environments such as ships, chemicals, and offshore platforms, the molybdenum-containing properties significantly improve its resistance to pitting corrosion.

High-strength alloy steel (optional): For scenarios that require higher mechanical strength, alloy steel can be selected and heat-treated to reach a strength level of 10.9 or 12.9.



Core application areas

Automobile manufacturing and maintenance: As an important auto parts nut, cross-hole hammer nuts are widely used in engine brackets, suspension system connections, exhaust pipe fixing, etc. Its cross-hole design facilitates maintenance personnel to quickly disassemble and assemble in the engine compartment with limited space, significantly reducing maintenance hours.

Rail transit and construction machinery: Used in railway fastener systems and excavator track adjustment mechanisms to withstand high-intensity vibrations without loosening.

Industrial automation equipment: On equipment that needs to frequently change molds or adjust the position of tooling, the cross-hole hammer nut can be quickly adjusted with bare hands, improving the efficiency of production line changeovers.



Quality control and certification system

Strict source control: All stainless steel raw materials must pass spectrometer testing to confirm that the chemical composition meets standards to prevent inferior materials from flowing into the production line.

Full-process dimensional inspection: For the key part of the cross hole, a high-precision imager is used to conduct 100% or sampling inspection to ensure the position of the cross hole, the hole diameter tolerance, and the coaxiality with the thread, so as to avoid assembly difficulties caused by processing deviations.

Hardness test: Ensure that the heat treatment process is in place to meet the hardness level required by the customer (such as 8.8, 10.9).

Salt spray test: simulates harsh environments to verify the corrosion resistance life of stainless steel materials.

System Certification: The company has passed ISO 9001 quality management system certification, and can cooperate with customers in the automotive industry to provide PPAP (Production Part Approval Process) documents and material certificates, fully meeting the stringent quality traceability requirements of automotive parts nuts.



Customized services

Customized drawings: Whether you provide design drawings (supporting STEP, IGS, DWG formats), technical parameter sheets or hand-drawn sketches, our team of engineers can transform them into qualified products that meet mechanical performance requirements.

Sample copy: If you have an imported auto parts nut that cannot be found in the market, please send us a sample. We will use precision surveying and reverse engineering technology to achieve fully compatible localized replacements to help you reduce costs.



Full parameter customization

Thread specifications: Metric (M series), inch (UNC/UNF), and American can be customized.

Cross hole size: The diameter, quantity (single hole or multiple holes), and position of the cross hole can be adjusted according to the installation tool or pin specifications.

Overall dimensions: The length, width, and height of the nut can be optimized and designed according to the installation space limit.

Surface treatment: Provides various post-treatment processes such as stainless steel natural color, polishing, passivation, galvanizing, Dacromet, etc. to meet the corrosion resistance needs in different environments.

Flexible minimum order quantity: For the R&D testing or small batch repair market, we support small batch customization and can obtain high-quality non-standard nuts without bearing high mold costs.



FAQ

Q: What is a cross-hole hammer nut? What is the difference between it and ordinary nuts?

A: A cross-hole hammer nut is a specially shaped nut with one or more cross-holes on its side. Compared with ordinary hexagonal nuts, it can be operated by hand by inserting a round rod or pin without a wrench, which is especially suitable for frequent disassembly and assembly or narrow spaces that are difficult to enter with tools.



Q: Why is this "non-standard nut" specified on my auto parts design drawing?

A: In automobile design, cross-hole hammer nuts are used as automobile parts nuts and are mainly used in parts that require rapid repair or have limited space (such as around the engine, chassis suspension). Its cross-hole design allows maintenance workers to operate quickly without completely disassembling peripheral components, reflecting the automotive industry's emphasis on maintenance convenience.



Q: Can this special-shaped nut withstand high-intensity vibration? Will it come loose easily?

A: Totally bearable. The cross-hole hammer nut usually adopts an extended thread engagement design and a larger contact surface, and a cotter pin or fuse is inserted into the cross hole to achieve double anti-loosening. As a professional auto parts nut, we can provide products that meet the high strength level of 10.9 or even 12.9, ensuring that they are still safe and reliable under severe vibration.



Q: How long does it take for the delivery time of customized stainless steel cross-hole hammer mother?

A: For regular specifications, they are usually available from stock. For non-standard nut customization, the delivery time is generally 15-20 working days after drawing confirmation (including mold development and sample confirmation time). If urgent processing is required, a fast lane can be activated to prioritize production.
