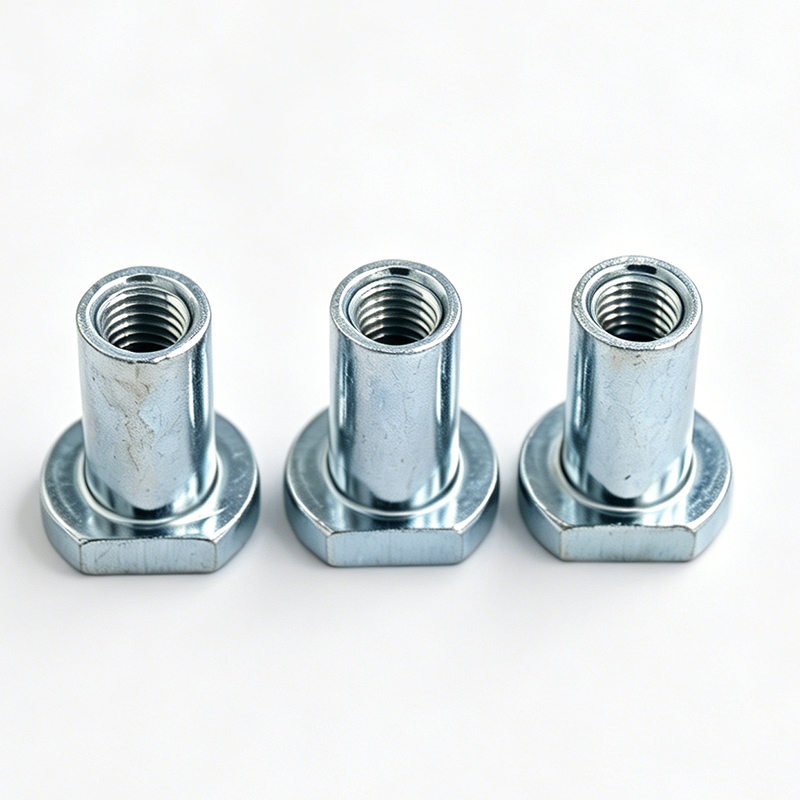

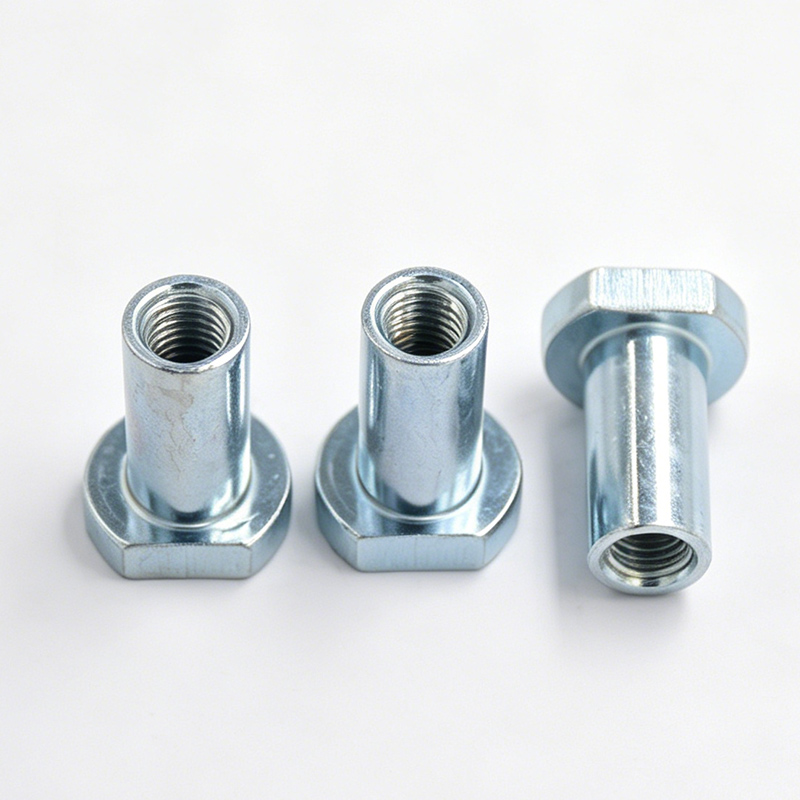

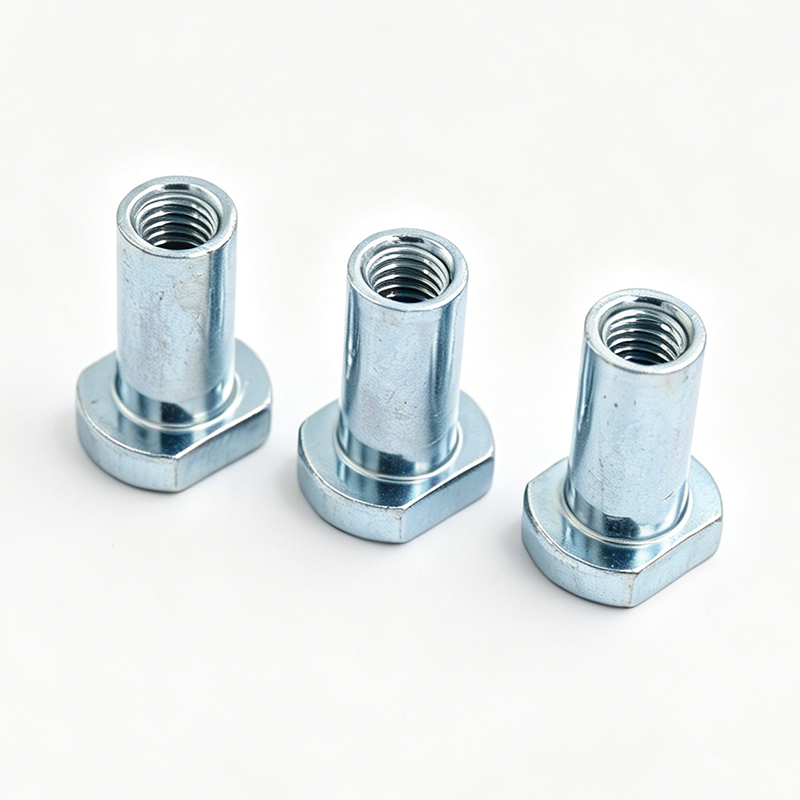

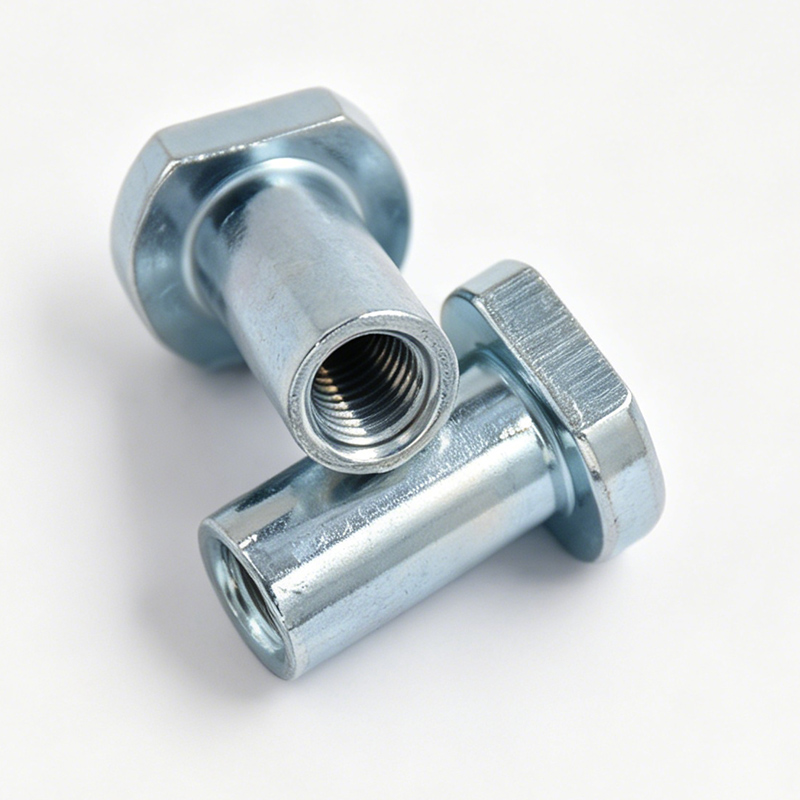

Non-Standard Special-Shaped Nuts

Non-standard special-shaped nuts (referred to as "non-standard nuts") refer to nut fasteners whose size, thread specifications, head shape or structural design do not fully comply with national standards (such as GB, DIN, ISO, etc.) and need to be customized according to specific equipment or working conditions.

Send Inquiry

Product Description

Product introduction

Non-standard special-shaped nuts (referred to as "non-standard nuts") refer to nut fasteners whose size, thread specifications, head shape or structural design do not fully comply with national standards (such as GB, DIN, ISO, etc.) and need to be customized according to specific equipment or working conditions. Compared with standard nuts, the emergence of non-standard nuts is to solve special connection needs that cannot be met by standard parts - whether it is non-standard thread size, special anti-loosening structure, or specific installation space restrictions, all need to be realized through customized design. As typical non-standard fasteners, non-standard nuts are widely used in automobile manufacturing, engineering machinery, medical equipment, new energy and other fields.

Common non-standard nut types include: special-shaped nuts (such as T-type nuts, ball head nuts), K-type lock nuts, high-strength customized nuts, and special-shaped nuts for specific connection objects. Among them, customized special-shaped nuts can be designed with ultra-thin, heightened or special-shaped heads according to the limitations of the installation space to meet special assembly needs.

Product design and features

Flexible head and shape design: This is the fundamental feature that distinguishes it from standard parts. Non-standard nuts can be customized with various head shapes such as hexagonal head, square head, round head, T-type head, K-type head, etc. -1 according to customer needs, and are even designed to customize special-shaped nuts to adapt to small spaces or special assembly needs.

Diversified anti-loosening structure design: Many non-standard nuts integrate special anti-loosening functions:

Nylon anti-loosening nut (nylon cap): It is formed by cold forging and then pressed into the nylon ring, using the elasticity of nylon to achieve the anti-loosening effect.

K-type anti-loosening nut: Hexagonal outer diameter, with 65 manganese steel toothed spring washers on the side. It is named after the K-shaped shape and is suitable for connection scenarios that are subject to vibration.

All-metal locking structure: Anti-loosening is achieved through local deformation of the nut or special thread design, suitable for high temperature environments

High-strength and precise manufacturing process: High-quality non-standard nuts are usually made by cold heading forming process, and are processed through multi-station cold forging, tapping, capping and other processes. This process maintains the continuity of the metal fibers, giving the product greater strength and consistent dimensional accuracy.

Flexible design that adapts to multiple standards: Non-standard nuts can implement different standard systems such as ISO, IFI, DIN, JIS, BS, GB according to customer needs, or can be completely separated from the standards for customized design.

Materials and application fields

Core material:

Carbon steel series: such as high-quality carbon steel and high-strength steel, which can obtain mechanical properties from level 4.8 to level 12.9 after quenching and tempering heat treatment. Carbon steel non-standard nuts are the most common custom option in industry, offering affordable cost and reliable strength.

Stainless steel series: grades such as 304, 316, 201, etc., have excellent corrosion resistance and are suitable for corrosive environments such as humid and chemical industries. Stainless steel non-standard nuts are processed by precision casting or cold heading, and can be customized according to drawings.

Copper, aluminum alloy and other special materials: used for special needs such as conductivity, lightweight or antimagnetic.

Surface treatment options:

Non-standard nuts can undergo a variety of surface treatments to meet anti-corrosion and appearance requirements: galvanized nuts (blue and white zinc, colored zinc) are the most common treatment methods -1-9; blackening, nickel plating, chrome plating, Dacromet, passivation and other processes can also be selected.

Wide application areas:

Automobile manufacturing: high-strength, anti-vibration, customized connection Auto parts nuts are an important product type, including wheel hub locking nuts, engine high-torque nuts, etc., and implement IATF 16949 system certification.

Mechanical equipment: universal connection, heavy-duty fixation, carbon steel non-standard nuts are used with high-strength bolts, the grade can reach 8.8 or above

New energy and electricity: photovoltaic brackets, wind power equipment fastening, weather-resistant galvanized or Dacromet treated non-standard nuts.

Medical equipment and electronics: precision, clean, corrosion-resistant, stainless steel non-standard nuts, can be customized to tiny specifications.

Aerospace and military industry: High reliability, extremely tight tolerances, special non-standard nuts certified by AS9100/GJB system.

Quality control and certification system

Whole-process testing: from raw materials to finished products, covering the following key links:

Raw material inspection: spectral analysis of chemical components and preliminary testing of mechanical properties to ensure that the material meets the requirements

Process control: Dimensional and thread accuracy monitoring during cold forging and tapping processes

Finished product inspection: Use thread pass and stop gauges, optical projectors, and three-dimensional coordinate measuring machines to ensure that the size and thread accuracy meet the drawing requirements; use a universal testing machine to verify mechanical properties such as tensile strength and guaranteed load.

Corrosion resistance test: salt spray test to verify the anti-corrosion ability of galvanized or passivation layer

Authoritative certification system: Leading non-standard nut manufacturers usually hold the following certifications:

ISO 9001:2015: Basic quality management system

IATF 16949: Quality Management System for the Automotive Industry (Required for Professional Auto Parts and Nut Suppliers)

ISO 14001: Environmental Management System

ISO 45001: Occupational health and safety management system

Traceability: Each batch of non-standard nuts should provide complete material certificates, test reports and compliance statements to ensure traceability of product quality.

Customized services

Demand docking: Customers provide detailed drawings indicating dimensions, thread specifications, materials, performance levels and surface treatment requirements; if there are no drawings, physical sample mapping can be provided

Process review: Manufacturers evaluate the manufacturability of the design (such as cold heading feasibility, tapping accuracy) and select the optimal process path

Sample production: Produce samples in strict accordance with the drawings to ensure thread accuracy and appearance structure for customers to put on the machine for assembly testing.

Sample confirmation: The customer tests the sample in the assembly environment and confirms that it is suitable before mass production-5

Mass production: After the sample is confirmed, it will be put into mass production, and core processes such as cold heading, tapping, heat treatment, and surface treatment will be controlled throughout the process.

Custom dimensions:

Head shape: hexagonal head, square head, T-shaped head, K-shaped head, round head, ball head, etc. Customized special shape nuts

Thread specifications: customized non-standard metric, imperial, American threads, and special pitches

Size specifications: Customized non-standard diameter, thickness, height, specifications range up to M3-M30-10

Material: carbon steel non-standard nuts, stainless steel, copper, aluminum, etc.

Surface treatment: galvanized nuts (blue and white zinc/color zinc), black, Dacromet, nickel plating, chrome plating, etc.

Performance grade: carbon steel can reach grade 4.8 to grade 12.9

Typical delivery time and minimum order quantity:

Customized products usually undergo sample production and testing confirmation before mass production.

Sample delivery time is about 1-2 weeks, bulk delivery time is usually 21-30 days

The minimum order quantity for cold heading non-standard nuts is generally around 10,000 pieces, and complex CNC-processed parts can be as low as several hundred pieces.

FAQ

Q: What is the core difference between non-standard nuts and standard nuts?

A: The core lies in whether it follows national standards. Standard nuts are universal and interchangeable, and can be purchased directly according to standard numbers, specifications, and materials; non-standard nuts need to be customized according to specific needs, and the size, thread, and shape are determined jointly by the customer and the manufacturer, and are not universal.

Q: What information do I need to provide to customize non-standard nuts?

A: The most important thing is to provide detailed drawings with dimensions, thread specifications, tolerances, materials, performance levels and surface treatment requirements. If there are no drawings, physical samples can be provided for the manufacturer to measure and map, or the usage scenarios and functional requirements can be described in detail, and the manufacturer can assist in the design.

Q: What is the usual minimum order quantity and delivery time for customized non-standard nuts?

A: Usually, samples are made and tested for confirmation before mass production. The sample stage is about 1-2 weeks, and the bulk delivery time is usually 21-30 days. The minimum order quantity for cold heading non-standard nuts is generally around 10,000 pieces, and complex parts processed by CNC can be as low as several hundred pieces.

Q: How to ensure the quality of customized non-standard nuts?

A: Regular suppliers should hold ISO 9001 and other quality management system certifications and provide full-process testing reports. For automotive parts nuts, suppliers usually need to hold IATF 16949 automotive industry system certification. Be sure to complete sample physical testing and confirmation before mass production.

Q: What are the common surface treatments for carbon steel non-standard nuts? What are the characteristics of each?

A: Galvanized nuts are the most common treatment method, providing good anti-corrosion performance and moderate cost. They are divided into blue and white zinc, colored zinc, etc. according to color. The blackened surface is black and has average rust resistance but low cost; the Dacromet coating has excellent salt spray resistance and is suitable for outdoor or coastal environments.
