Special-Shaped Fastener

Product Description:

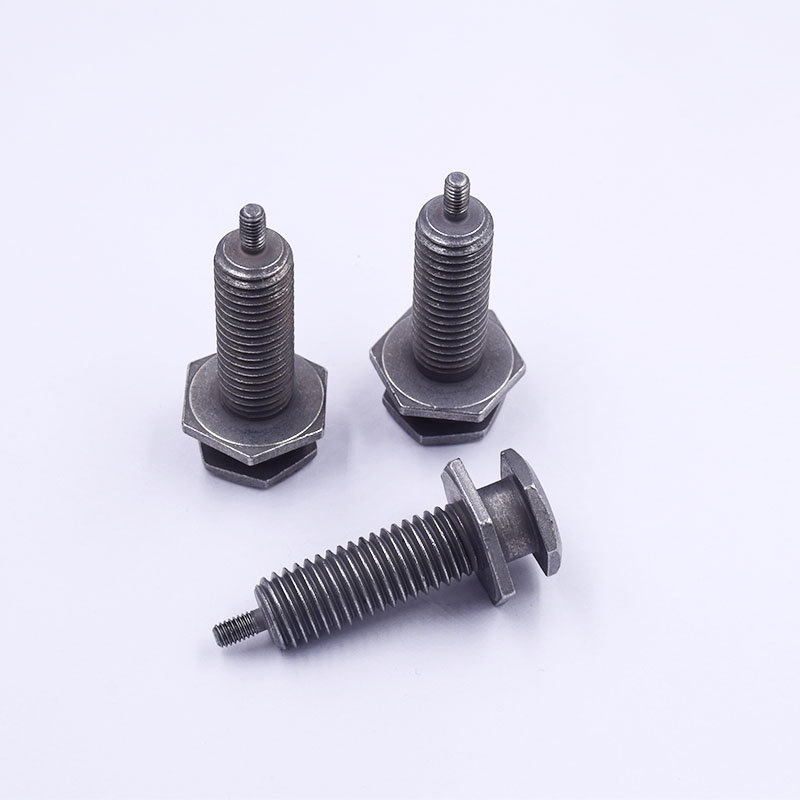

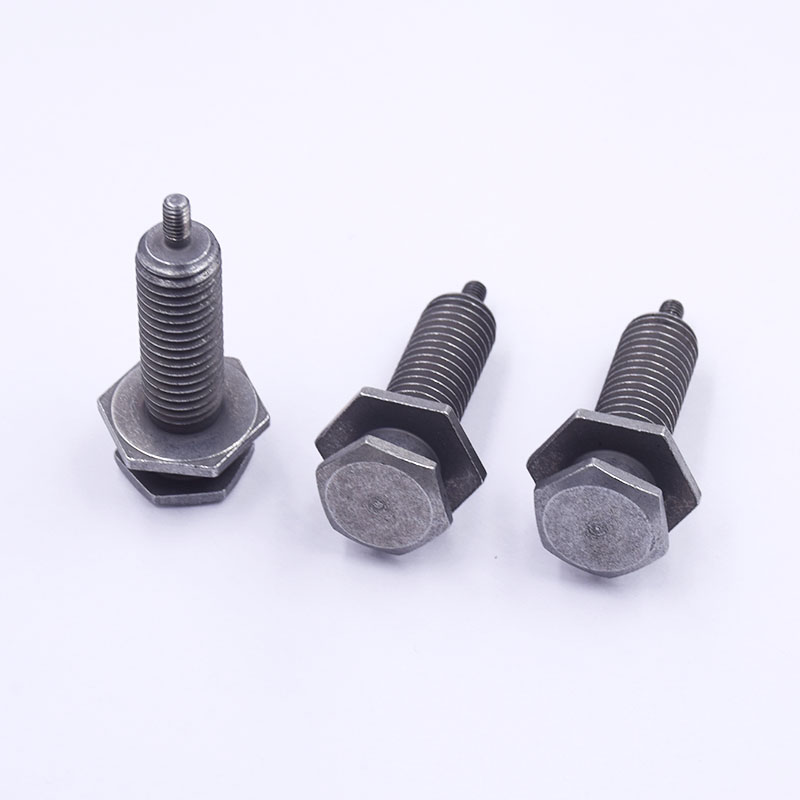

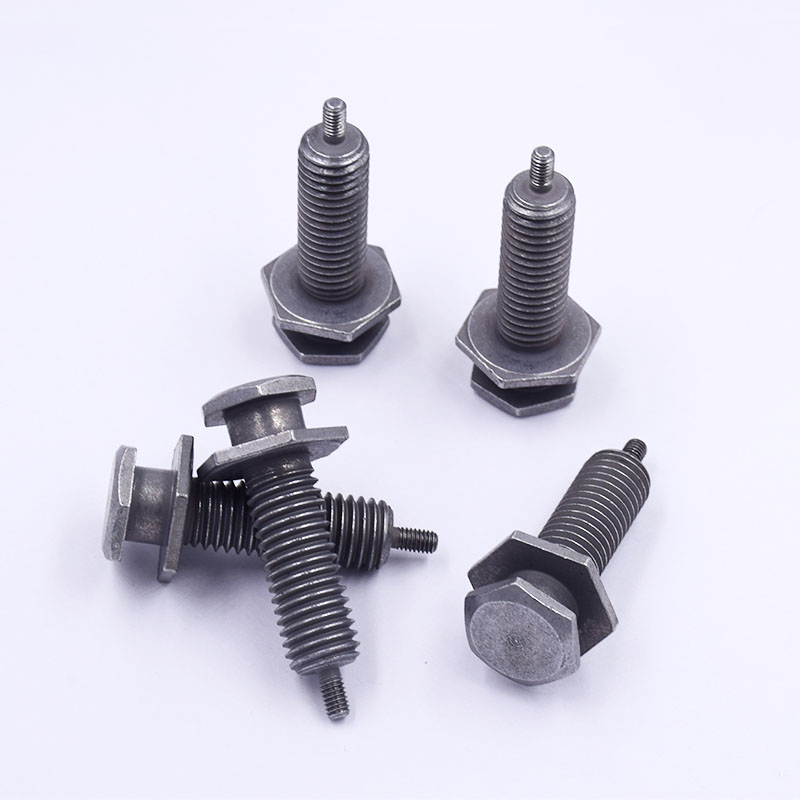

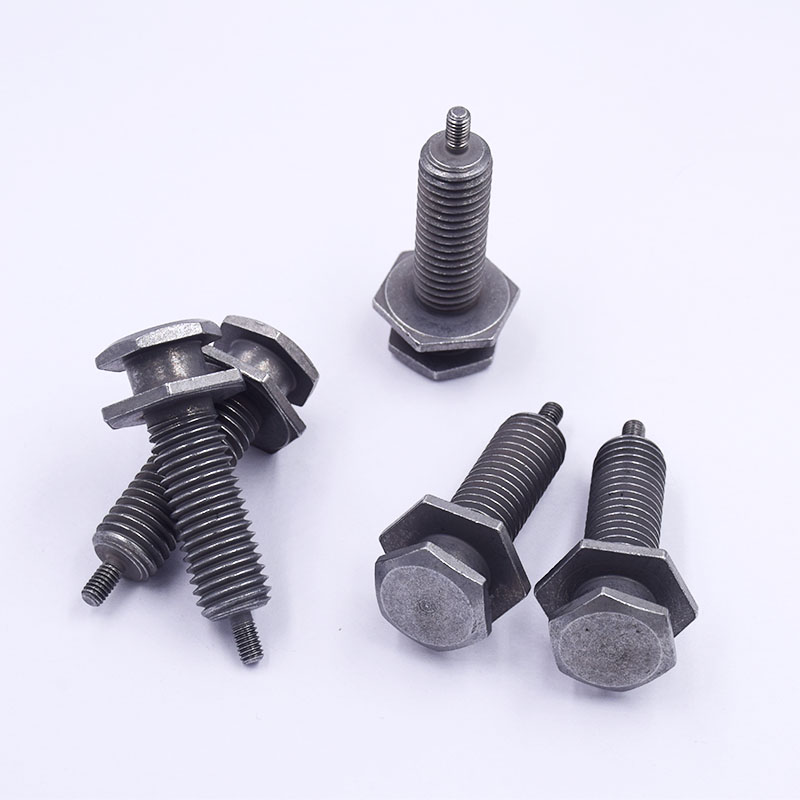

The Double Hexagon Step Adjustment Bolt is a novel type of fastener. It features a unique double hexagonal design on one end, which not only retains the tool compatibility of the traditional hexagonal head but also adds an auxiliary hexagonal structure, significantly enhancing installation convenience and torque-bearing capacity. The main body is made of 45# steel or stainless steel and is processed by precision CNC turning to ensure the thread accuracy (6g/6H grade). The intermediate step structure provides a stable supporting surface, and the surface is treated with galvanization/blackening to enhance corrosion resistance. It is particularly suitable for situations where space is limited but high-strength adjustment is required, such as precise mold positioning and assembly of automated equipment, and is an upgraded solution to traditional adjustment bolts.

Product Features:

1. Innovative single-end double hexagonal design, combining the main hexagonal head with the auxiliary hexagonal structure, provides dual tool interface, significantly enhancing installation convenience and torque transmission efficiency.

2. Enhanced mechanical properties, available in 45# steel/stainless steel options, undergo quenching and tempering treatment, with tensile strength increased by over 30%.

3. Precise step structure, CNC precision turning molding, with a supporting surface flatness of ≤ 0.02mm, ensuring uniform load distribution.

4. High-precision adjustment function, 6g/6H precision threads, adjustment accuracy of ±0.05mm, with self-locking anti-loosening structure.

5. Excellent surface treatment, multiple anti-rust processing options available, including galvanization/blackening/dacromet coating, with salt spray test duration of over 500 hours.

6. Professional application design, patented anti-slip tooth design, optimized stress distribution structure, suitable for high-vibration environments.

Product Applications:

1. Precision Machinery Field: Fine adjustment of CNC machine tool guideways, calibration of precision measuring instruments, focusing systems of optical equipment

2. Automation Equipment: Joint adjustment of industrial robots, positioning of automated production lines, fixation of intelligent assembly fixtures

3. Mold Manufacturing Industry: Adjustment of injection mold spigot plates, control of gap in stamping molds, positioning of die-casting molds

4. Automotive Industry Application: Assembly of new energy battery modules, adjustment of engine mounts, fine adjustment of chassis suspension systems

5. High-end Equipment Manufacturing: Precise positioning of semiconductor equipment, height adjustment of medical equipment, assembly of aerospace instruments

6. Special Working Conditions: Anti-loosening fixation for high-vibration equipment, mechanical connection in high-temperature environments, structural adjustment in corrosive situations

Product Advantages:

1. Revolutionary structural design advantage, innovative single-end double hexagonal structure achieving dual tool compatibility, main hexagonal head (standard size) and auxiliary hexagonal head (compact size) combination, breaking the operational limitations of traditional single hexagonal structure in narrow spaces

2. Outstanding installation adjustment performance, bidirectional tool interface design increases installation efficiency by 50%, auxiliary hexagonal head provides additional torque support point, preventing tool slipping, precise thread matching achieves ±0.02mm micro adjustment accuracy

3. Superb mechanical performance, using special alloy steel material, tensile strength over 1000MPa, unique stepped structure design, bearing capacity increases by 40%, patented anti-loosening structure, stable in vibration environments

4. Professional-level surface treatment, multi-layer composite coating technology, corrosion resistance reaches 1000 hours salt spray test, special surface hardening treatment, wear resistance increases by 60%, multiple surface treatment options available to adapt to different working conditions

5. Intelligent application characteristics, integrated torque indication function, optional digital adjustment scale, compatible with automated assembly systems

6. Industry-leading reliability, ISO 9001/14001 certification, compliance with DIN/ANSI international standards, service life up to 100,000 adjustment cycles

FAQ

Q1: What is the single-end double hexagonal design?

A1: It innovatively integrates the main hexagonal head (standard size) and the auxiliary hexagonal head (compact size) on the bolt's single end. The main hexagonal head is used for regular tool operations, while the auxiliary hexagonal head is specially designed for narrow spaces, with a diameter 30% smaller than the main hexagonal head.

Q2: What are the advantages compared to traditional adjusting bolts?

A2: The installation efficiency is increased by 50% (bidirectional tool interface), the torque carrying capacity is increased by 40% (dual force-bearing structure), and the space adaptability is improved by 60% (compact auxiliary hexagonal head).

Q3: What are the typical application scenarios of this product?

A3: New energy battery module assembly, precise positioning of semiconductor equipment, adjustment of aerospace instruments, and fine-tuning of medical equipment.
